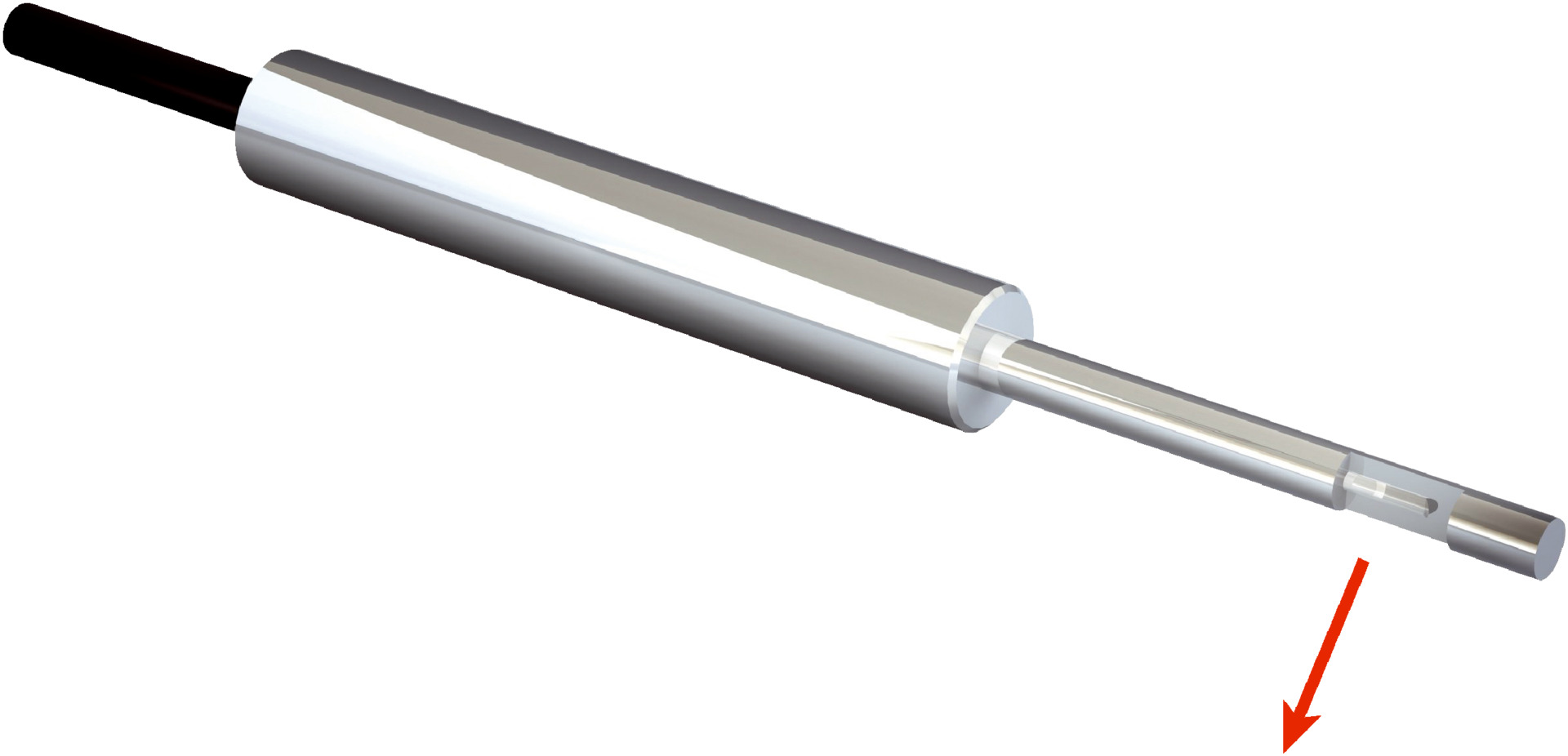

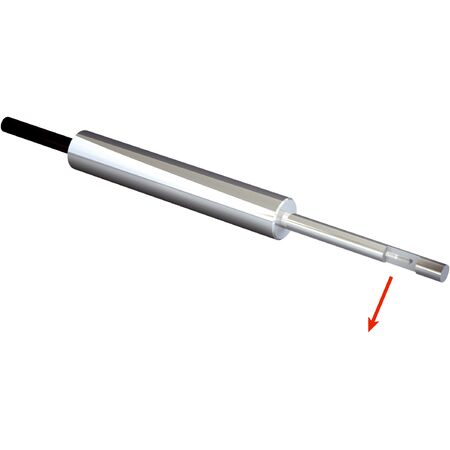

Fiber Optic Sensor Cable LL3-TV02 | Through-Beam System | 1,070 mm Sensing Range | Stainless Steel Design | by SICK
The LL3-TV02 fiber optic sensor cable features a through-beam system with a maximum sensing range of 1,070 mm, making it ideal for industrial automation and object detection applications. Designed for precision, it detects minimal object diameters of just 0.1 mm and is constructed from durable stainless steel, ensuring longevity and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, Long end sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: 1,070 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.1 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Smooth sleeve diameter: 2.5 mm
- Optical fiber taper diameter: ≥ 1 mm
- Optical fiber taper length after 2 mm: ≥ 10 mm
- Fiber length: 2,000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 0.5 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head available in smooth sleeve, long end sleeve, and 90° deflection designs
- Maximum sensing range of 1,070 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.1 mm
- Radial light emission with 60° angle of dispersion
- Optical fiber cable can be shortened
- Includes adapter sleeves and FC fiber cutter for installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and compatible amplifiers.
Applications
- Standard sensing applications requiring fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable stainless steel and polyethylene materials increase product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The SICK LL3-TV02 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
