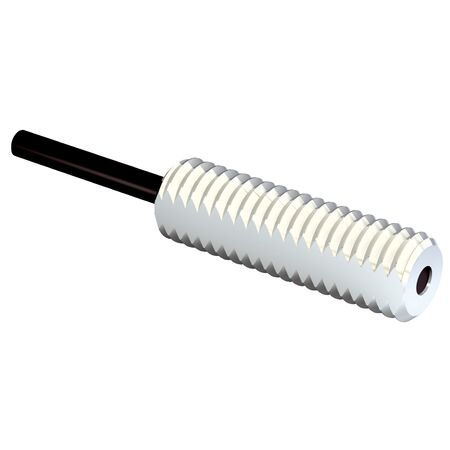

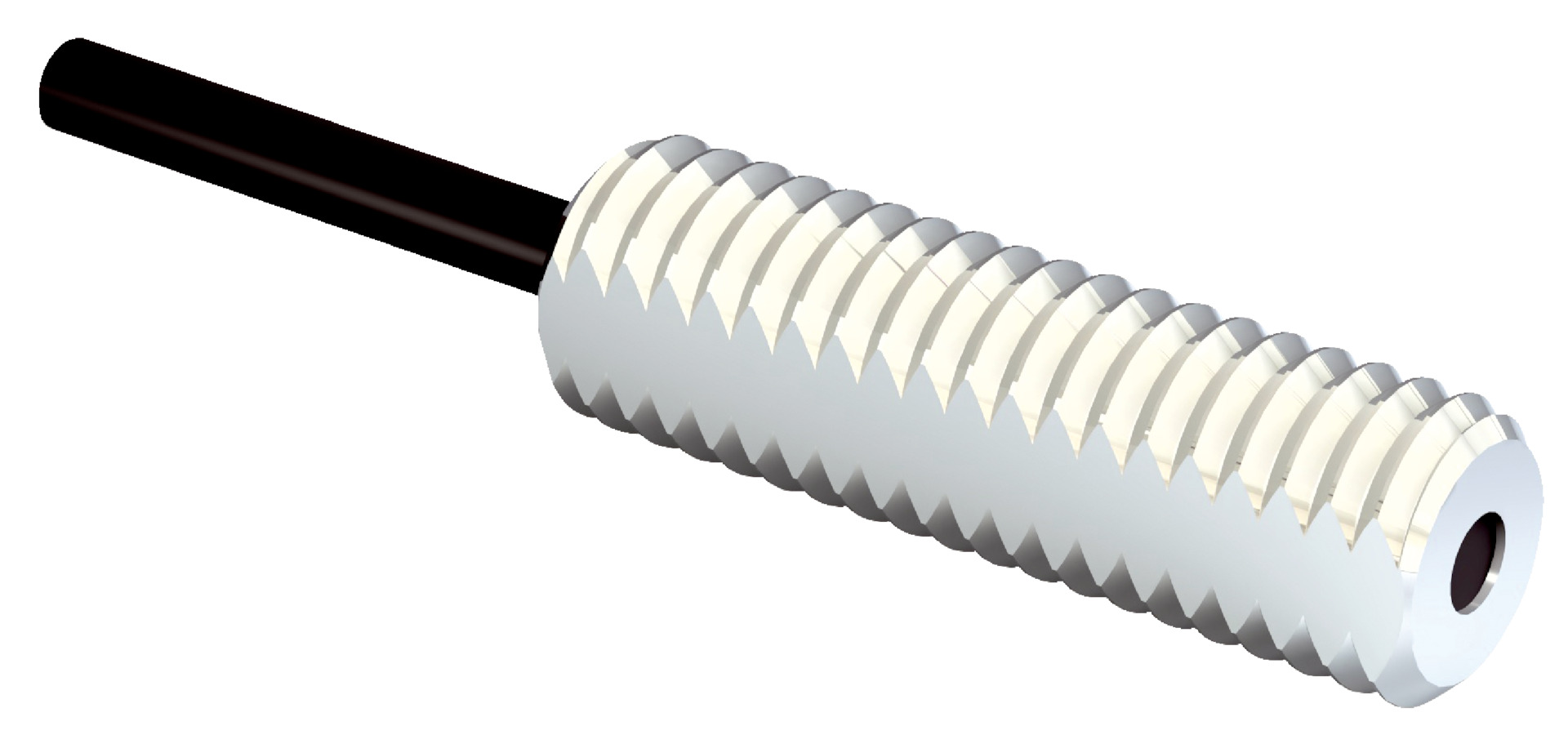

Fiber Optic Sensor Cable LL3-TR02 | Through-Beam System | 1,310 mm Sensing Range | Stainless Steel Head | by SICK
The LL3-TR02 fiber optic sensor cable features a through-beam system with a sender and receiver, offering a maximum sensing range of 1,310 mm. Designed for high flexibility in static and dynamic applications, this cable is perfect for robotics and industrial automation. Its stainless steel head and polyethylene sheath ensure durability and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Sensing range max: 1,310 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.1 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Fiber length: 2,000 mm
- Bending radius: 4 mm
- Dynamic flexibility: Yes (robotics)
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Multi-fiber
- Core structure: 4 x Ø 0.25 mm Multi-fiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Sensing range up to 1,310 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.1 mm
- Axial light emission with M3 thread diameter housing
- Optical fiber cable length of 2,000 mm with 4 mm bending radius
- Dynamic flexibility suitable for robotics
- Multi-fiber core structure with 4 x Ø 0.25 mm fibers
- Stainless steel optical fiber head with polyethylene sheath
- Includes mounting hardware and adapter sleeves
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and secure mounting.
Applications
- High flexible static sensing applications
- Robotics with dynamic flexible sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving automation efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TR02 fiber-optic cable is available for immediate purchase, ideal for industrial automation and robotic sensing applications.
