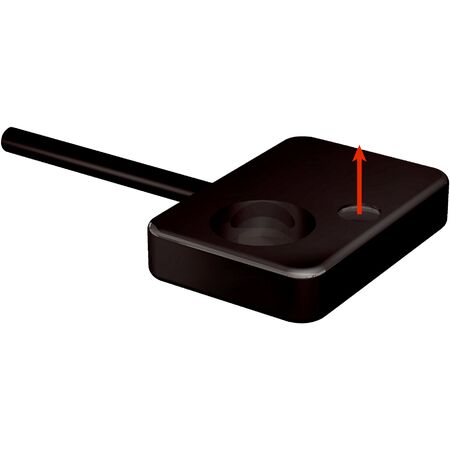

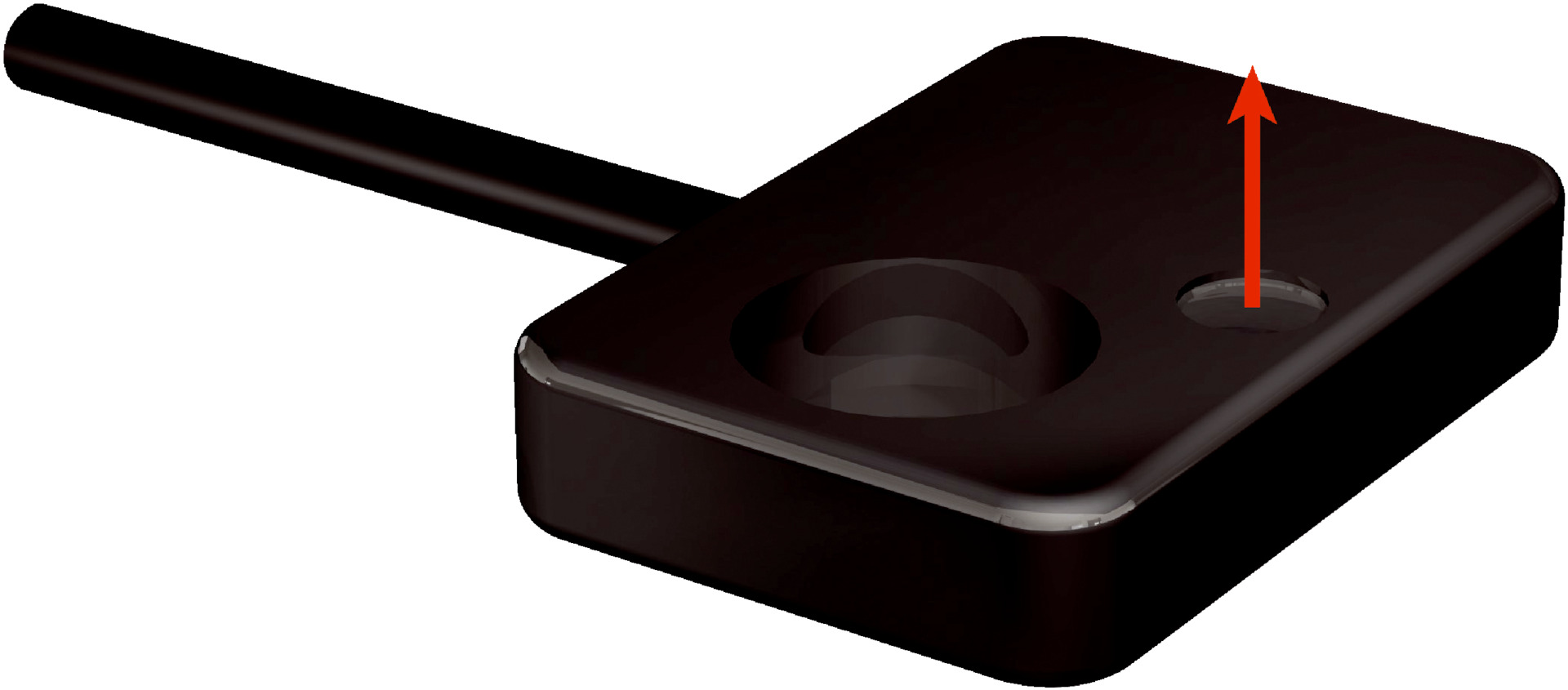

Fiber Optic Sensor Cable LL3-TE01 | Through-Beam System | 1,600 mm Sensing Range | Flat Type Design | by SICK
The LL3-TE01 fiber optic sensor cable features a through-beam system with a sender and receiver, offering a maximum sensing range of 1,600 mm. Designed for high flexibility and precision, this flat type fiber-optic head is perfect for industrial automation and object detection applications. With a minimal object diameter detection of just 0.08 mm, it ensures accurate sensing in various environments, operating effectively in temperatures from -40 °C to +60 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max: 1,600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.08 mm
- Angle of dispersion: 36.01°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Polycarbonate (PC)
- Optical fiber length: 1,000 mm
- Bending radius: 1 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 1 mm
- Fiber arrangement: Single fiber
- Core structure: 151 x Ø 0.05 mm single fiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Flat type fiber-optic head with axial light emission
- Sensing range up to 1,600 mm with WLL80 amplifier
- Minimal object diameter detection of 0.08 mm
- Optical fiber cable can be shortened
- Includes mounting accessories and adapter sleeves
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- High flexible static sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing to reduce waste and improve process efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TE01 fiber-optic cable is available for immediate purchase, ideal for industrial automation and sensing applications requiring high precision and flexibility.
