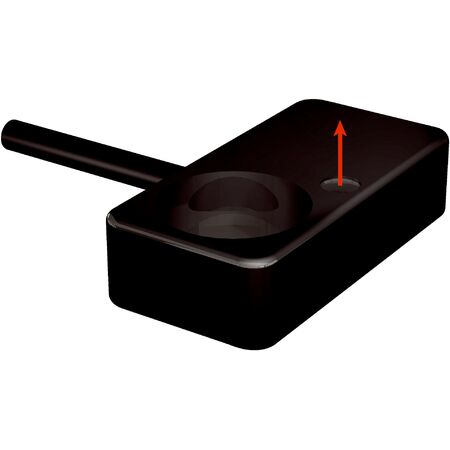

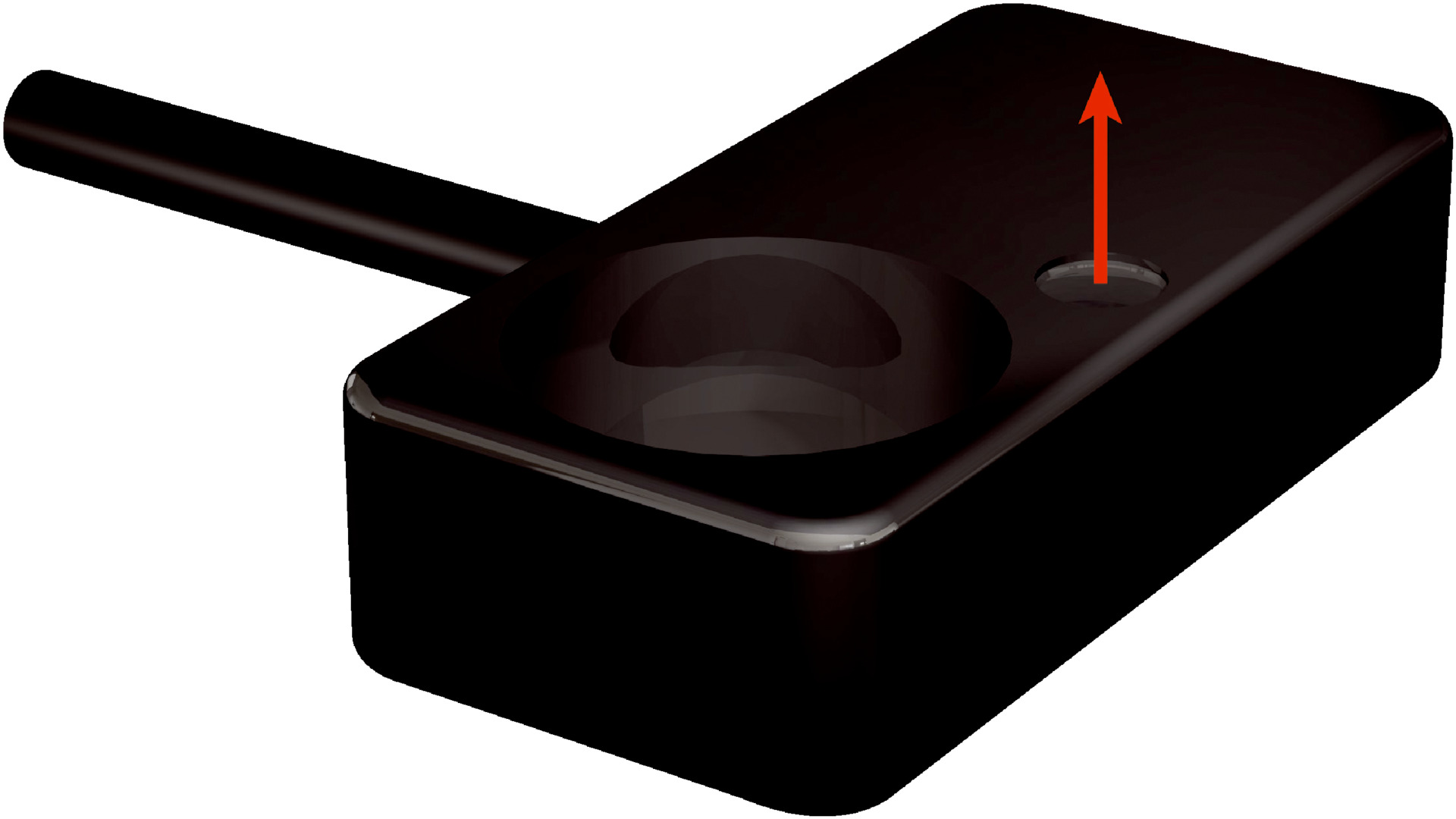

Fiber Optic Sensor Cable LL3-TE03 | Through-Beam System | 3600mm Sensing Range | Flat Type Head | by SICK
The Fiber Optic Sensor Cable LL3-TE03 features a through-beam system with a flat type head and a maximum sensing range of 3,600 mm, making it ideal for high flexible static sensing applications. Designed for industrial automation and object detection, this cable ensures precise sensing while reducing waste and improving process efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: 3,600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.08 mm
- Angle of dispersion: 42.61°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter
- Optical fiber head material: Polycarbonate (PC)
- Light emission: Radial
- Fiber length: 2,000 mm
- Bending radius: 1 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Single fiber
- Core structure: 151 x Ø 0.075 mm Single fiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylat (PMMA)
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Flat type fiber-optic head with 90° deflection
- Maximum sensing range up to 3,600 mm with WLL80 amplifier
- Minimal object diameter detection of 0.08 mm
- Integrated lens with 42.61° angle of dispersion
- Optical fiber cable can be shortened
- Adapter end sleeves required and included
- Radial light emission from polycarbonate fiber-optic head
- Fiber length of 2,000 mm with 1 mm bending radius
- Single fiber arrangement with polymethylmethacrylat (PMMA) fibers
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- High flexible static sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LL3-TE03 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
