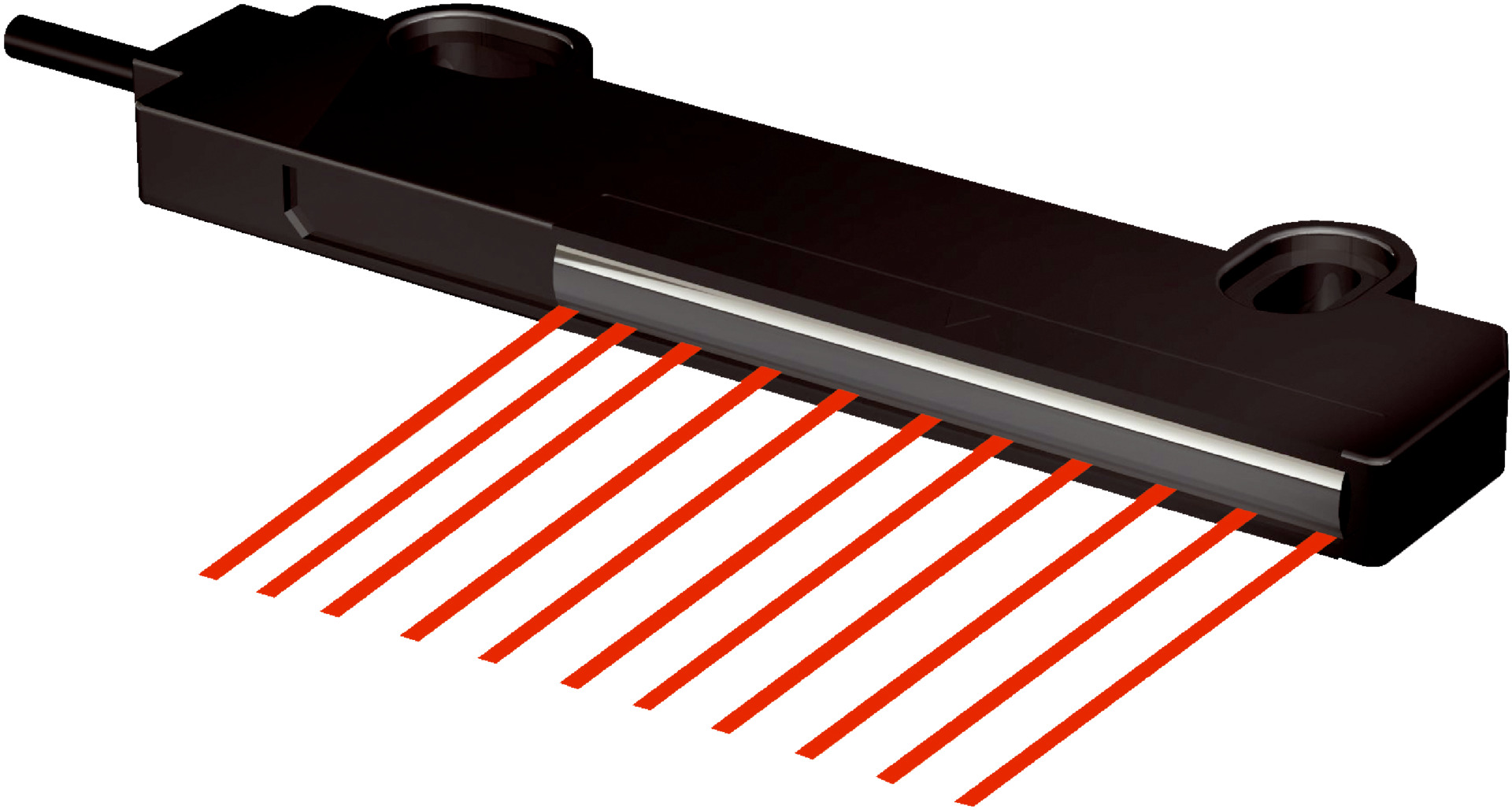

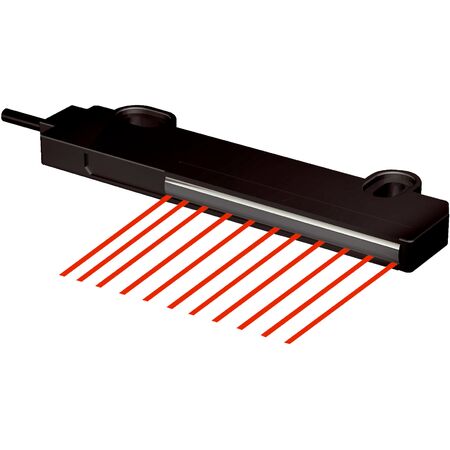

Fiber Optic Sensor Cable LL3-TS40 | Through-Beam System | 3600mm Sensing Range | Flat Type Design | by SICK
The LL3-TS40 fiber optic sensor cable features a through-beam system with a flat type head and a sensing range of up to 3600mm, making it ideal for industrial automation and precise area detection. Designed for high flexibility and minimal object diameter detection of 0.4mm, this durable cable operates efficiently in temperatures ranging from -40°C to +60°C, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection, Array
- Sensing range max: 3,600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.4 mm
- Angle of dispersion: 24.27°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Light emission: Radial
- Optical fiber head material: Polyamide (PA)
- Fiber length: 2,000 mm
- Bending radius: 2 mm
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.0 mm Multi-fiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 2000mm x 40mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Flat type fiber-optic head with 90° deflection and array design
- Long fiber optic cable cell for extended sensing range
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range up to 3,600 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.4 mm
- Integrated lens with 24.27° angle of dispersion
- Optical fiber cable can be shortened without adapter end sleeves
- Radial light emission from polyamide optical fiber head
- Fiber length of 2,000 mm with 2 mm bending radius
- Multi-fiber core structure with 1.0 mm diameter fibers
- Operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and connection with compatible amplifiers.
Applications
- High flexible (static) area detection
- Industrial automation sensing
- Object detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TS40 fiber-optic cable is available for immediate purchase, ideal for industrial automation and precise area detection applications.
