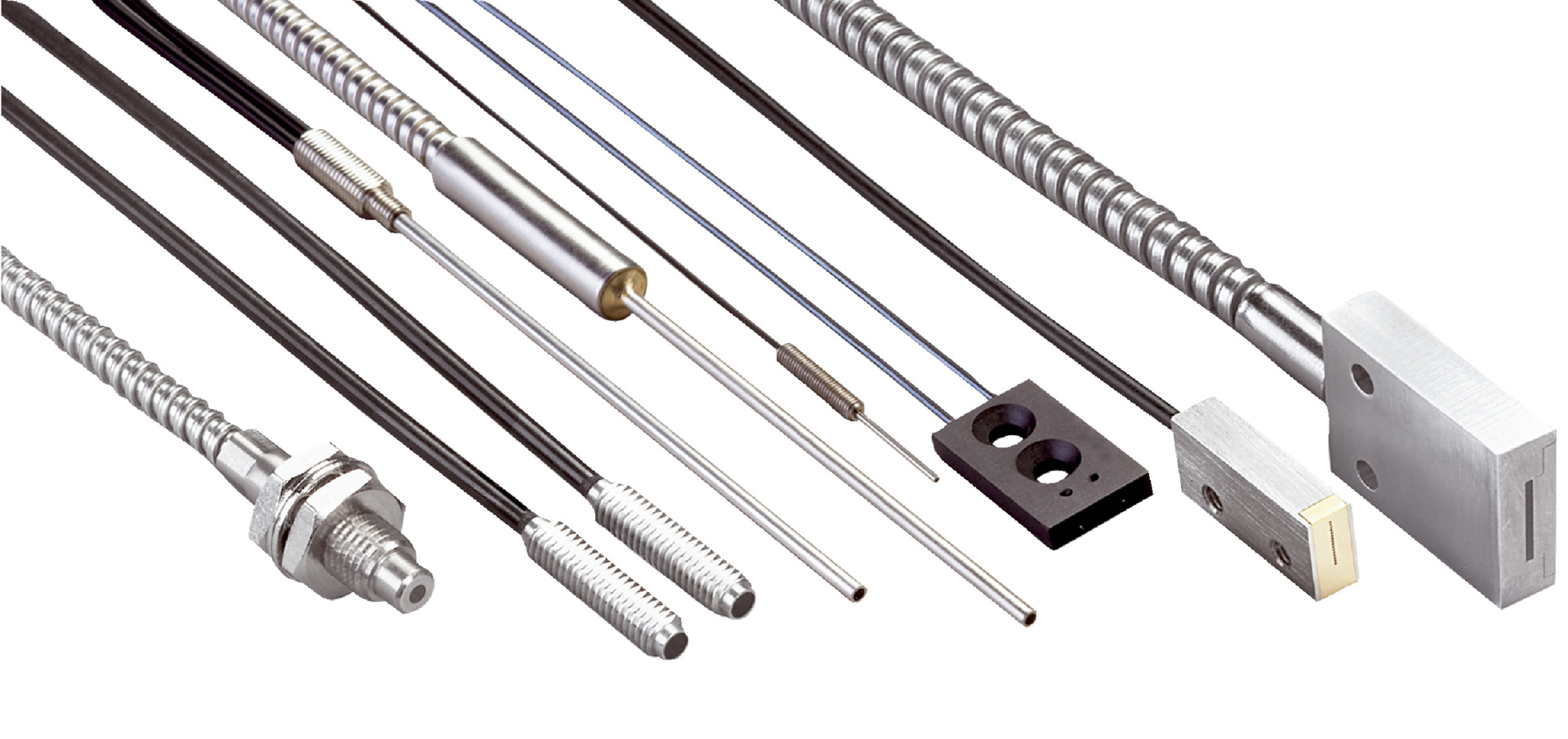

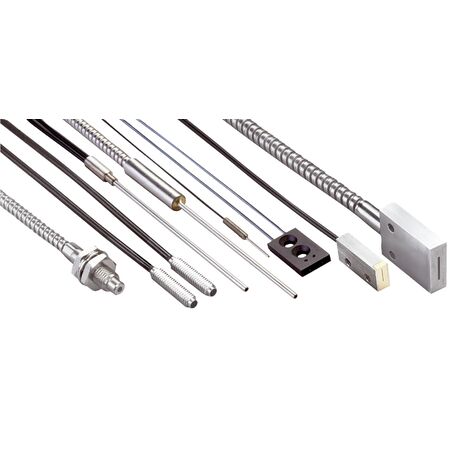

Fiber Optic Sensor Cable LL3-TS09 | Through-Beam System | 60° Dispersion Angle | by SICK
The LL3-TS09 fiber optic sensor cable is designed for reliable area detection in industrial automation, utilizing a through-beam system with a 60° dispersion angle. Ideal for use with compatible fiber optic amplifiers, this multi-fiber cable ensures precise sensing while reducing electrical interference and energy consumption, making it a perfect choice for enhancing process efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fiber Optic Sensor Cable LL3-TS09 | Through-Beam System | 60° Dispersion Angle | by SICK
Brand: SICK
SKU: 1056990
Alternatively Known As: Fiber optic sensor cable, Through-beam fiber optic cable, SICK fiber optic sensor LL3-TS09
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Sensing range max.: Dependent on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Adapter end sleeves required: No
- Optical fiber head array width: 5 mm
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Dynamic flexibility (robotics): No
- Weight: 86 g
- Dimensions (H x L x W): 10mm x 50mm x 5mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic cable device type
- Angle of dispersion: 60°
- No integrated lens
- No compatibility with tip adapters
- No adapter end sleeves required
- Multi-fiber core structure and fiber arrangement
- Outside diameter of optical fiber cable connection: 2.2 mm
- Optical fiber head array width: 5 mm
- Not dynamically flexible for robotics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber optic sensor systems to ensure proper alignment and connection with compatible amplifiers.
Applications
- Area detection in industrial automation
- Use with fiber optic amplifiers for sensing applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Fiber optic technology reduces electrical interference and energy consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TS09 fiber-optic cable is available for immediate purchase, ideal for industrial area detection applications requiring reliable through-beam sensing.
