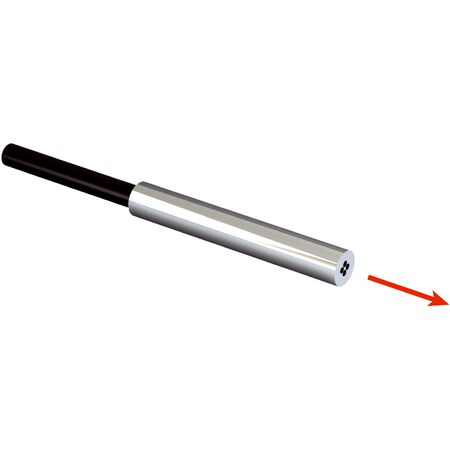

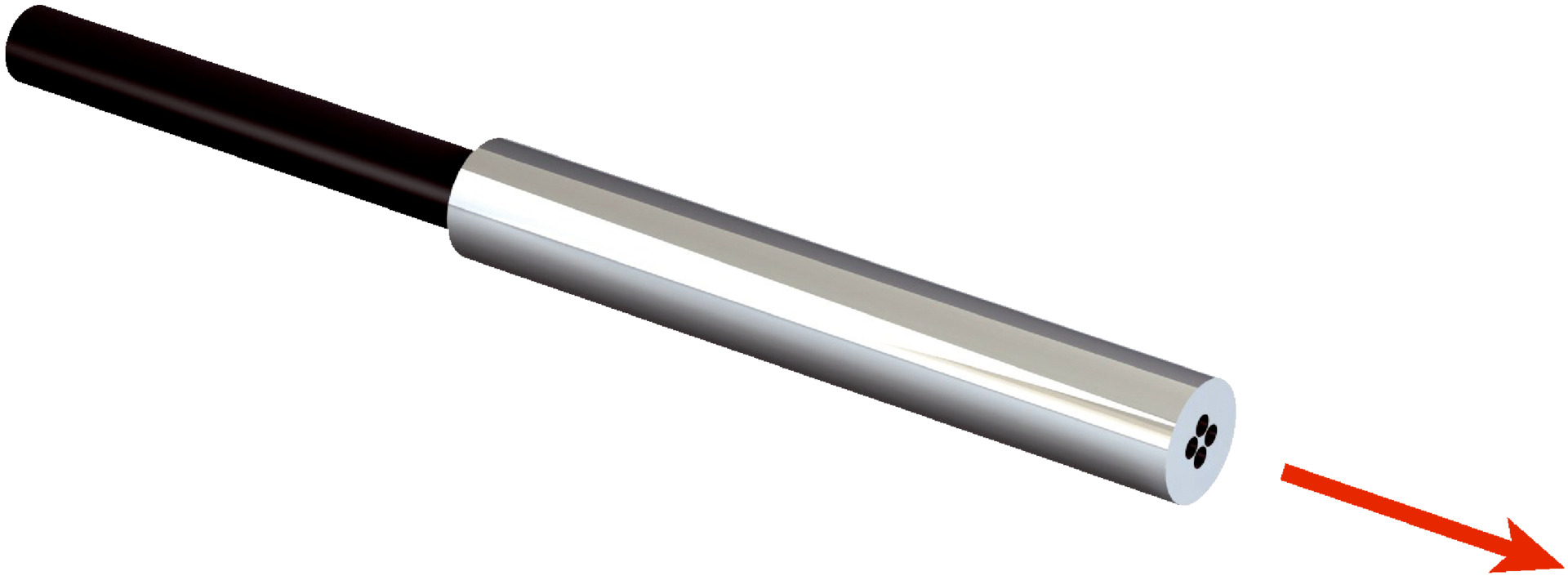

Fiber Optic Sensor Cable LL3-TR03 | Through-Beam System | 60° Dispersion | Stainless Steel Design | by SICK
The LL3-TR03 fiber optic sensor cable features a through-beam system with a sender and receiver, designed for high flexibility in robotics and static sensing applications. With a smooth sleeve design and an operating temperature range of -40 °C to +70 °C, this durable cable ensures precise sensing and improved automation efficiency, making it ideal for industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, stainless steel
- Angle of dispersion: 60°
- Light emission: Axial
- Smooth sleeve diameter: 1.5 mm
- Fiber length: 1000 mm
- Bending radius: 4 mm
- Dynamic flexibility: Suitable for robotics
- Optical fiber cable can be shortened
- Material: Polyethylene sheath, Polymethylmethacrylate fibers
- Operating temperature: –40 °C to +70 °C
- Compatible amplifiers: WLL80, WLL180, GLL170(T)
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Smooth sleeve fiber-optic head design
- Axial light emission with 1.5 mm stainless steel smooth sleeve diameter
- Multi-fiber optical fiber with 4 x Ø 0.25 mm core structure
- Optical fiber cable can be shortened
- Adapter end sleeves required and included with delivery
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Operating temperature range from –40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- High flexible (static) sensing applications
- Robotics (dynamic flexible) sensing applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving automation efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-TR03 fiber-optic cable is available for immediate purchase, ideal for industrial automation and robotic sensing applications.
