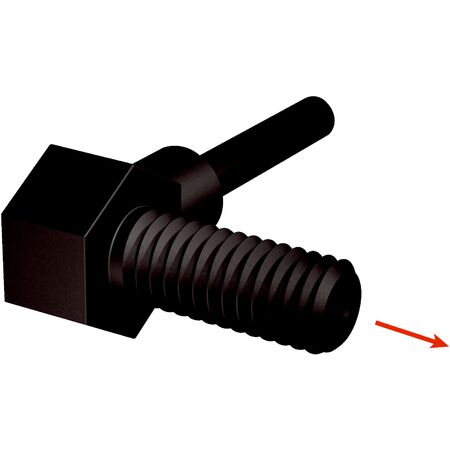

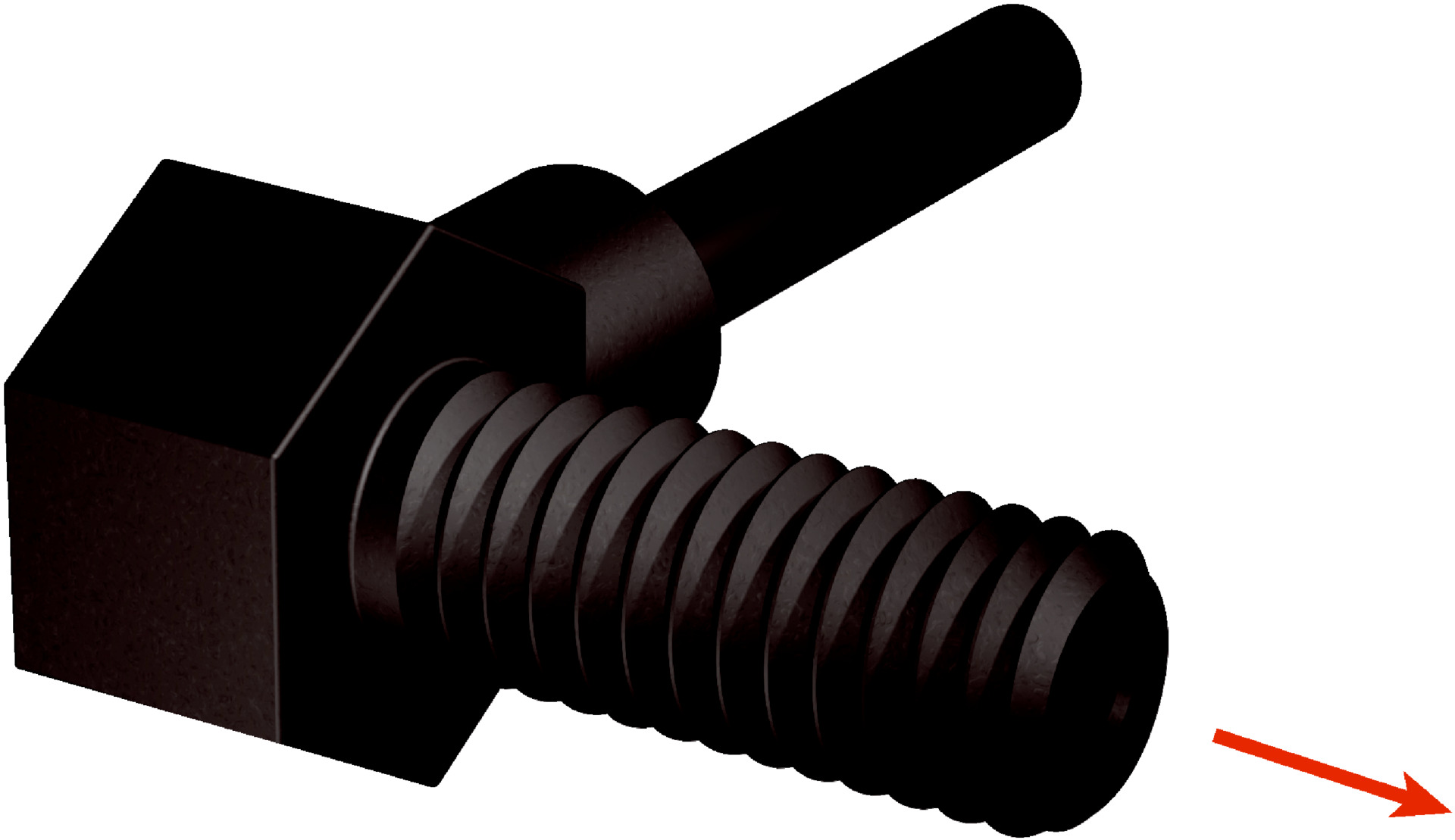

Fiber Optic Sensor Cable | Through-Beam System | 90° Deflection | 5000 mm Length | by SICK
The Fiber Optic Sensor Cable is designed for standard sensing applications, featuring a through-beam system with a sender and receiver. With a 90° deflection and a fiber length of 5000 mm, it ensures precise detection of minimal object diameters down to 0.4 mm. Built for industrial automation, this durable cable is compatible with various fiber-optic amplifiers, making it ideal for reliable performance in diverse environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.4 mm
- Angle of dispersion: 15.94°
- Integrated lens: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Light emission: Radial
- Thread diameter (housing): M4
- Fiber length: 5,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Core structure diameter: 1 mm
- Material: Polyamide (PA) head, Polyethylene (PE) sheath, Polymethylmethacrylate (PMMA) fibers
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with threaded sleeve and 90° deflection
- Integrated lens with 15.94° angle of dispersion
- Optical fiber cable can be shortened without adapter end sleeves
- Radial light emission from polyamide (PA) optical fiber head
- Fiber length of 5,000 mm with 25 mm bending radius
- Material: Polyamide (PA) head, polyethylene (PE) sheath, polymethylmethacrylate (PMMA) fibers
- Minimal object diameter detection of 0.4 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard sensing applications requiring through-beam fiber-optic systems
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials ensure long service life reducing waste
- Low power consumption when used with compatible amplifiers
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TV055000 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring precise through-beam detection.
