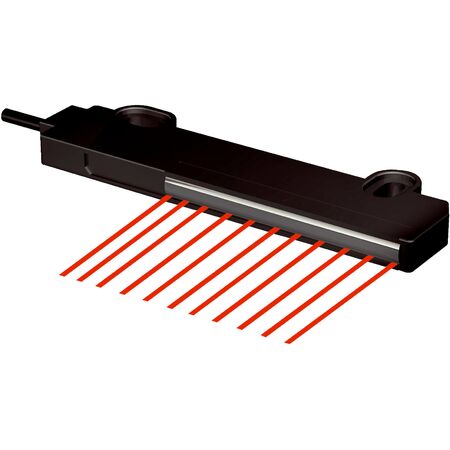

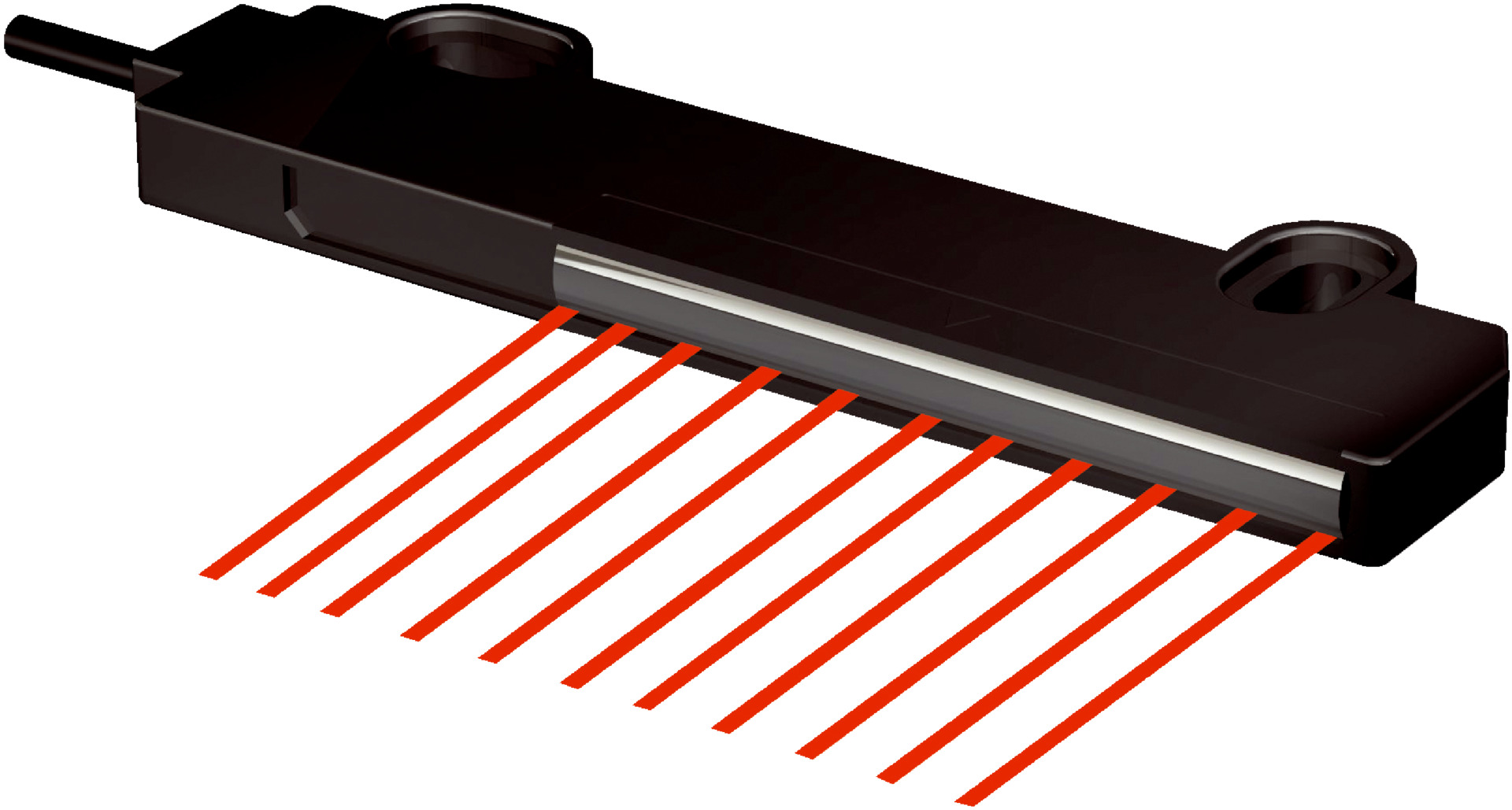

Fiber Optic Sensor Cable LL3-TS40-5 | Through-Beam System | 90° Deflection Flat Head | 5000mm Length | by SICK
The LL3-TS40-5 fiber optic sensor cable features a through-beam system with a sender and receiver, designed for high flexibility and precise area detection. With a flat type head and 90° deflection, it ensures minimal object diameter detection of just 0.4 mm, making it ideal for industrial sensing and automation applications. This cable is compatible with various fiber-optic amplifiers and can be shortened for customized installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection, Array
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.4 mm
- Angle of dispersion: 24.27°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Optical fiber compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Fiber length: 5000 mm
- Bending radius: 2 mm
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.0 mm Multi-fiber
- Material optical fiber head: Polyamid (PA)
- Sheath material: Polyethylen (PE)
- Fibers material: Polymethylmethacrylat (PMMA)
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 5000mm x 40mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Flat type fiber-optic head with 90° deflection and array design
- Long fiber optic cable cell for extended sensing range
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Minimal object diameter detection of 0.4 mm
- Integrated lens with 24.27° angle of dispersion
- Optical fiber cable can be shortened without adapter end sleeves
- Includes mounting hardware, FC fiber cutter, and protective cladding for fiber head
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- High flexible (static) applications
- Area detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Long cable length reduces need for multiple sensors, minimizing material use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TS40-5 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring high flexibility and precise area detection.
