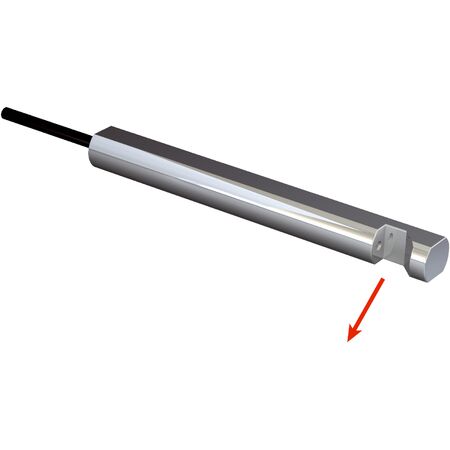

Fiber Optic Sensor Cable LL3-TS22M | Through-Beam System | 90° Deflection | Heat Resistant to 105°C | by SICK
The LL3-TS22M fiber optic sensor cable is designed for precision object detection in industrial automation, featuring a through-beam system with a 90° deflection head. With a sensing range of up to 3,600 mm and heat resistance up to 105°C, it's perfect for demanding environments. Built from durable materials, this cable ensures reliable performance and longevity, making it an ideal choice for applications requiring minimal object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver

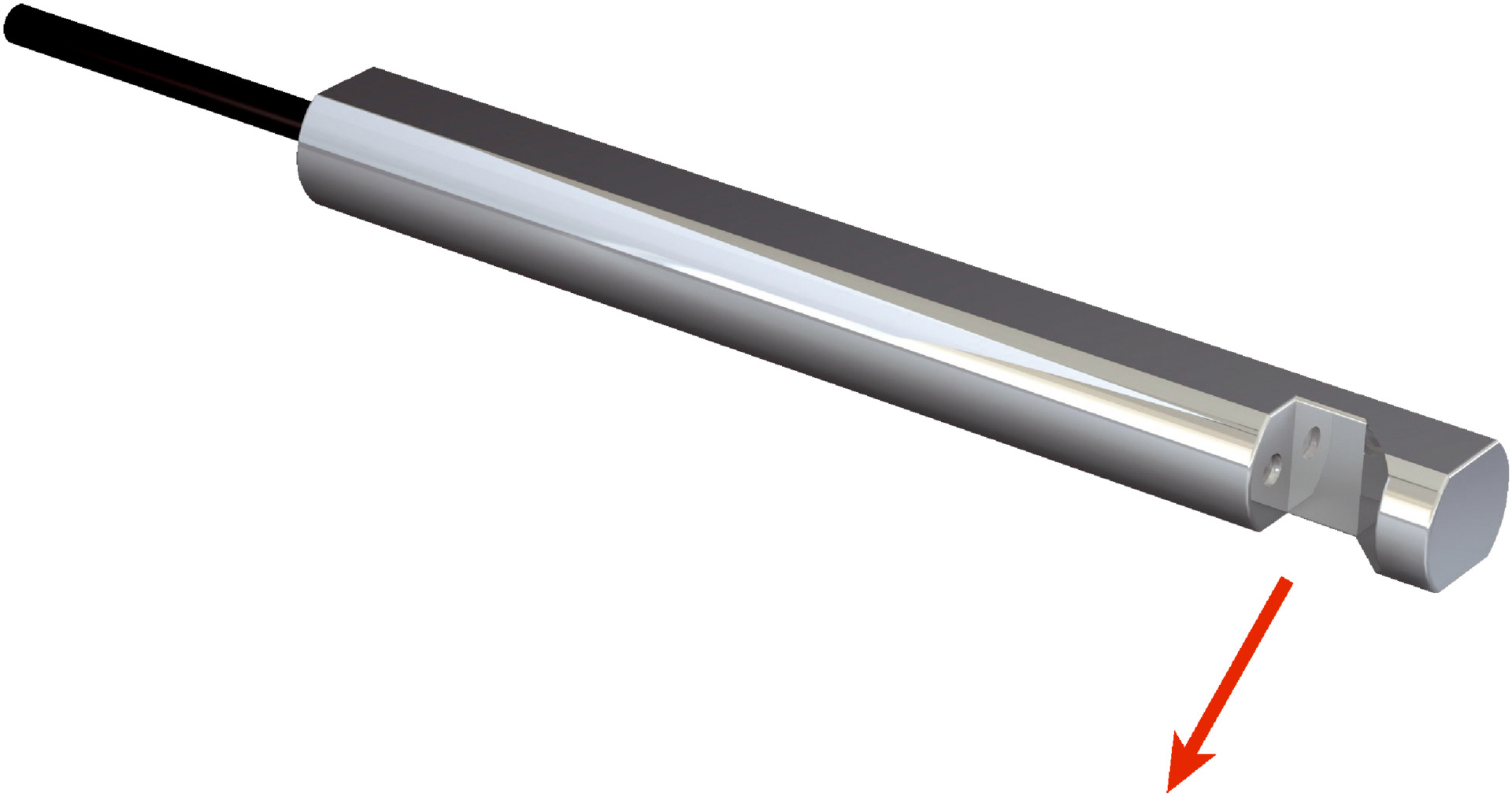

- Fiber-optic head design: 90° deflection, smooth sleeve
- Sensing range max: 3,600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.05 mm
- Angle of dispersion: 6.3°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Fiber length: 2,000 mm
- Bending radius: 10 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 1 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 0.5 mm single fiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40°C to +105°C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Fiber-optic head with 90° deflection and smooth sleeve
- Heat-resistant up to 105°C
- Sensing range up to 3,600 mm depending on amplifier and operating mode
- Integrated lens with 6.3° angle of dispersion
- Radial light emission from stainless steel fiber-optic head
- Optical fiber cable can be shortened
- Includes adapter sleeves and fiber cutter for installation
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and compatible amplifiers to ensure optimal performance and safety.
Applications
- Industrial automation sensing
- Heat-resistant environments up to 105°C
- Precision object detection with minimal diameter of 0.05 mm
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TS22M fiber-optic cable is available for immediate purchase, ideal for industrial automation and heat-resistant sensing applications.
