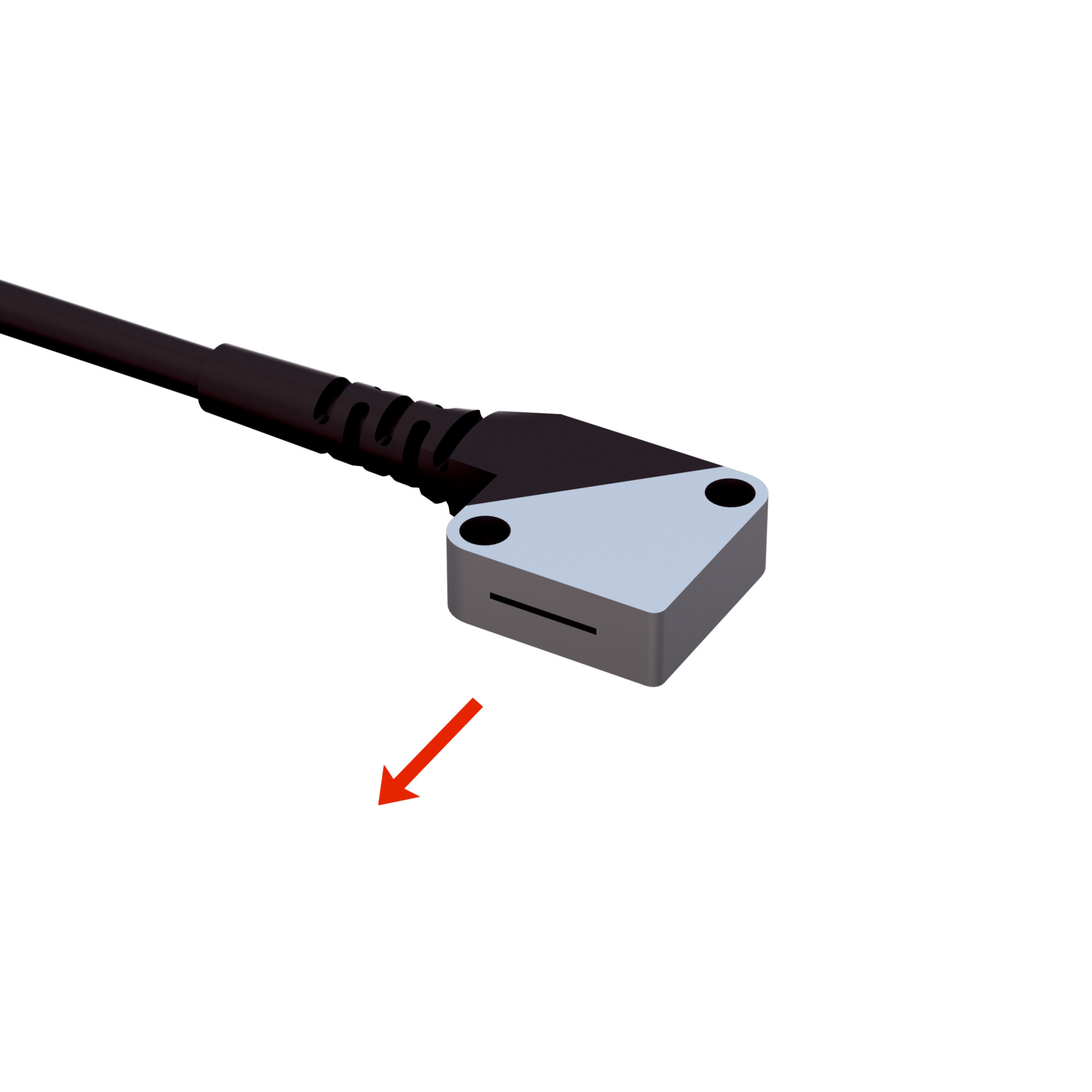

Fiber Optic Sensor Cable LL3-TS05 | Through-Beam System | Flat Type Head with 90° Deflection | by SICK
The LL3-TS05 fiber optic sensor cable features a through-beam system with a sender and receiver, designed for precise area detection in industrial automation. With a flat type head and 90° deflection, it allows for minimal object detection down to 0.2 mm. Built from durable stainless steel and polyethylene, this cable operates effectively in temperatures ranging from -55 °C to +70 °C, making it ideal for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection, Array
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.2 mm
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Optical fiber head array width: 4 mm
- Fiber length: 2000 mm
- Bending radius: 5 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: 16 x Ø 0.265 mm multi-fiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -55 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 4mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Flat type fiber-optic head with 90° deflection and array design
- Small fiber optic cable cell for precise sensing
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Optical fiber cable can be shortened without adapter end sleeves
- Radial light emission from stainless steel optical fiber head
- Multi-fiber core structure with 16 fibers of 0.265 mm diameter each
- Polyethylene (PE) sheath and polymethylmethacrylate (PMMA) fibers
- Operating temperature range from -55 °C to +70 °C
Professional Installation Requirements
- Installation by trained personnel recommended to ensure proper connection with compatible fiber-optic amplifiers and correct handling of fiber-optic cables.
Applications
- High flexible (static) area detection
- Industrial automation sensing
- Object detection with minimal diameter of 0.2 mm
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LL3-TS05 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications requiring precise area detection.
