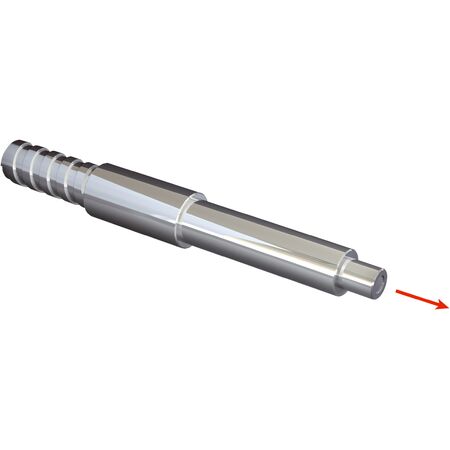

Fiber Optic Sensor Cable LL3-TW01 | Through-Beam System | Heat-Resistant | Stainless Steel | by SICK
The LL3-TW01 fiber optic sensor cable features a through-beam system with a threaded sleeve design, making it ideal for industrial sensing applications. With a heat resistance of up to 210°C and compatibility with infrared light, this durable stainless steel cable ensures reliable performance in extreme environments, reducing the need for frequent replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Sensing range: Dependent on fiber optic amplifier used
- Minimal object diameter detection: 0.4 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 1000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.5 mm multi-fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Ambient operating temperature: –60 °C to +210 °C
- Sensing ranges with WLL180T: 80 mm to 980 mm depending on operating mode
- Sensing ranges with GLL170: 556 mm
- Sensing ranges with GLL170T: 866 mm to 1435 mm depending on operating mode
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Heat-resistant up to ≥100°C
- Compatible with infrared light
- Includes mounting hardware: 4 x M4 hexagon nuts, 2 x washers
- Stainless steel optical fiber head and sheath
- Multi-fiber glass core structure with 1.5 mm diameter
- Axial light emission with 60° angle of dispersion
- Fiber length 1000 mm with 25 mm bending radius
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper integration with compatible fiber-optic amplifiers and secure mounting.
Applications
- Industrial sensing applications requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Environments with ambient temperatures from -60°C to +210°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Heat resistance reduces need for frequent replacements in high-temperature environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty details.
Available Now
The SICK LL3-TW01 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat-resistant fiber optic solutions.
