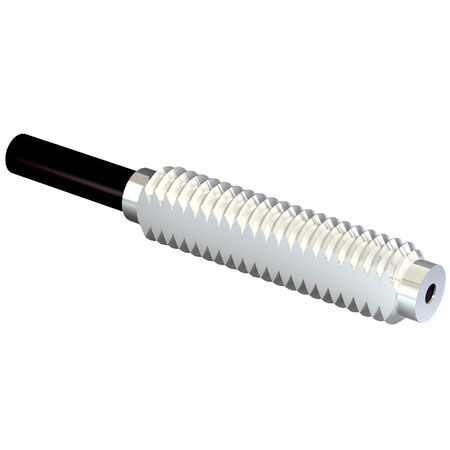

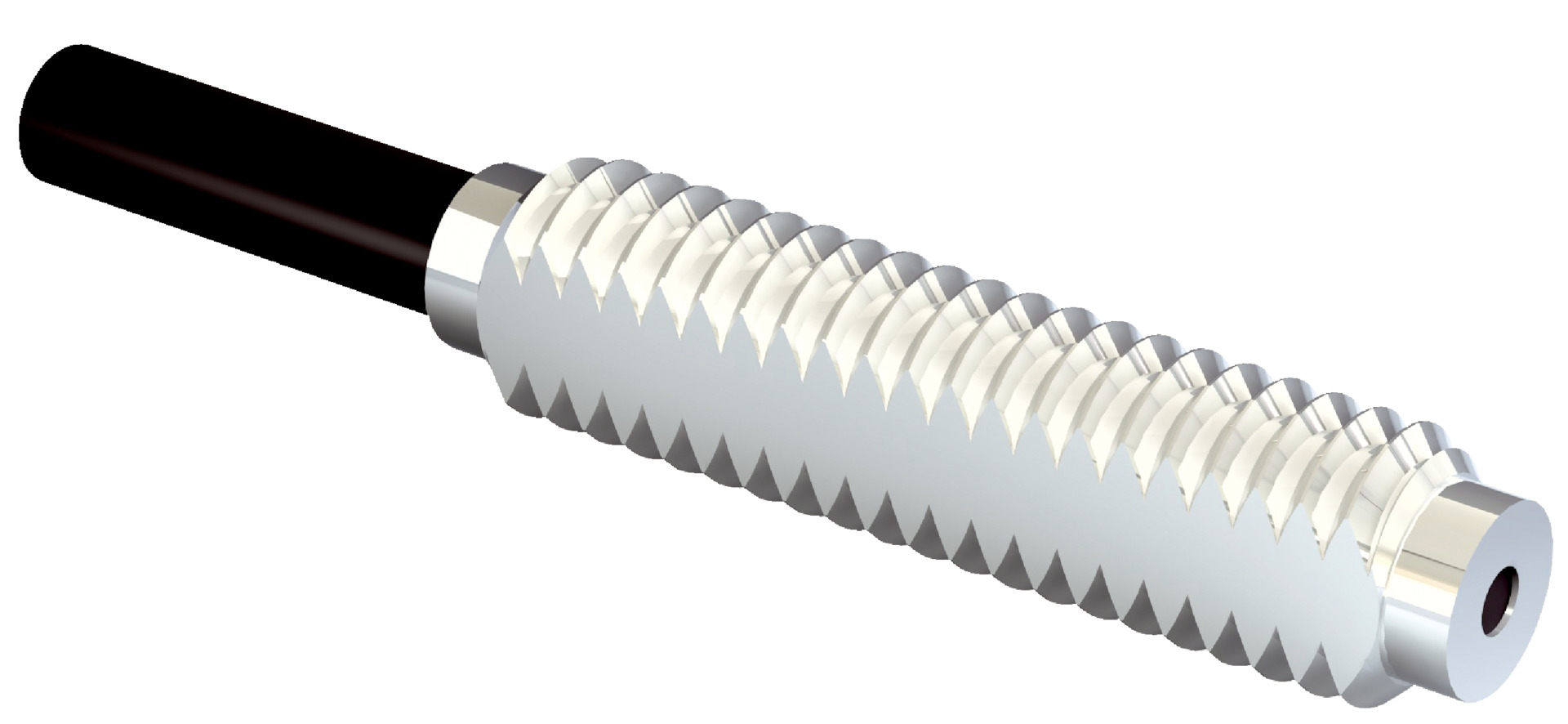

Fiber Optic Sensor Cable | Through-Beam System | Heat-Resistant Up to 180°C | Stainless Steel Design | by SICK
The Fiber Optic Sensor Cable is designed for industrial sensing applications, featuring a through-beam system with a sender and receiver. With a heat resistance of up to 180°C and a stainless steel threaded sleeve design, this cable is perfect for environments with temperatures ranging from -40°C to +180°C. Its 5,000 mm length and 60° angle of dispersion make it versatile for various setups, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve, stainless steel
- Application: Heat-resistant (≥100°C), operating temperature -40°C to +180°C
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Fiber length: 5,000 mm
- Bending radius: 35 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.5 mm single fiber
- Sheath material: Fluorethylenpropylen (FEP)
- Fiber material: Polymethylmethacrylat (PMMA)
- Dimensions (H x L x W): 10mm x 100mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design made of stainless steel
- Heat-resistant up to 180°C
- Axial light emission with 60° angle of dispersion
- Fiber-optic cable length of 5,000 mm with 2.2 mm outside diameter
- Single fiber arrangement with 1.5 mm core structure
- Fiber-optic cable can be shortened without adapter end sleeves
- Includes mounting hardware and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical wiring standards.
Applications
- Industrial sensing applications requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Environments with ambient operating temperatures from -40°C to +180°C
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Heat resistance minimizes energy consumption for cooling in high-temperature environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The SICK LL3-TH02-05 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat-resistant fiber optic solutions.
