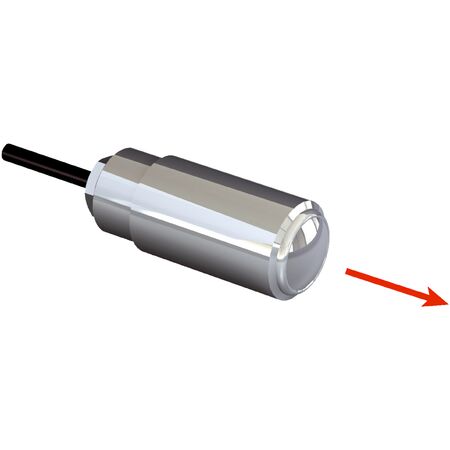

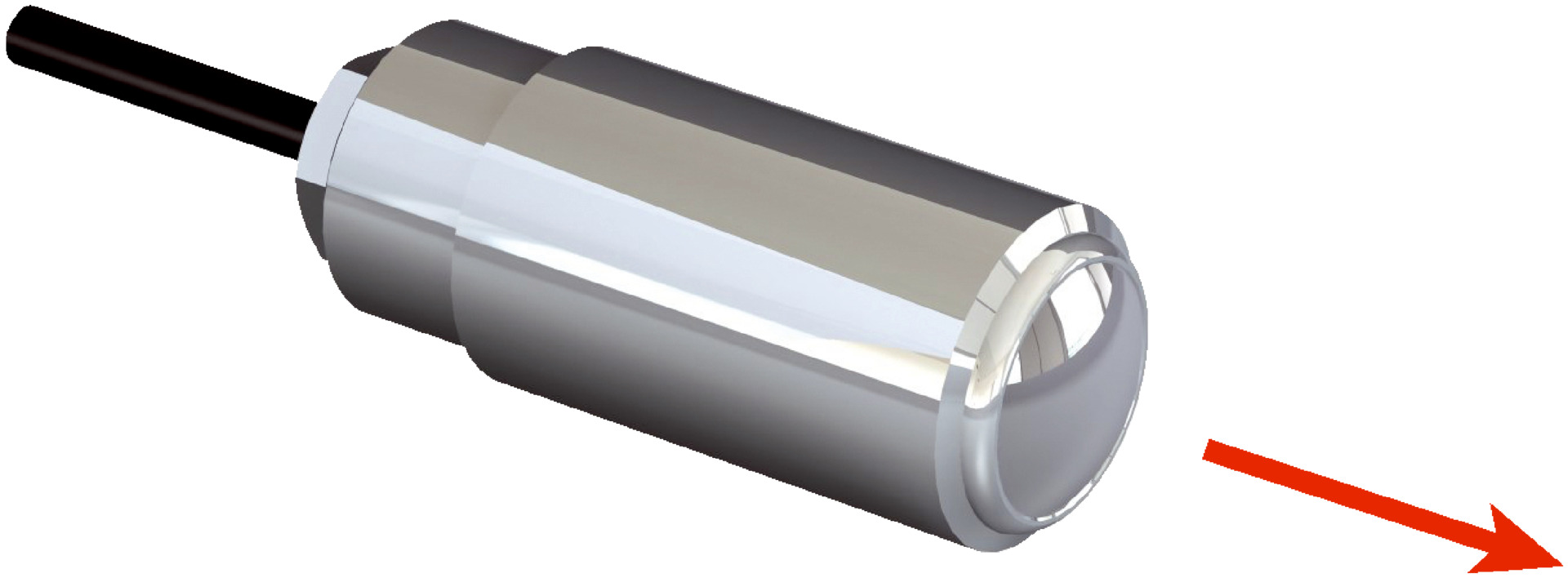

Fiber Optic Sensor Cable LL3-TX0405 | Through-Beam System | Integrated Lens | Threaded Sleeve Design | by SICK
The LL3-TX0405 fiber optic sensor cable features a through-beam system with a sender and receiver, designed for precise sensing in industrial automation. With an integrated lens and a threaded sleeve head design, it ensures reliable performance in machine safety and object detection applications. Ideal for professionals, this cable enhances system reliability by reducing electromagnetic interference.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Sensing range max.: Dependent on fiber optic amplifier used
- Angle of dispersion: 10.29°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Thread diameter (housing): M12
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Single fiber
- Included with delivery: Mounting, 4 x M12 hexagon nut, FC fiber cutter (5304141)
- Sensing ranges with GLL170 operating mode 250 µs: 8,800 mm
- Sensing ranges with GLL170T operating mode 50 µs: 9,300 mm
- Sensing ranges with GLL170T operating mode 250 µs: 9,600 mm
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Angle of dispersion: 10.29°
- Integrated lens for precise sensing
- Fiber-optic cable can be shortened without adapter end sleeves
- Includes mounting hardware, 4 x M12 hexagon nuts, and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and secure mounting.
Applications
- Industrial automation sensing
- Through-beam detection systems
- Machine safety and object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Fiber-optic technology reduces electromagnetic interference, enhancing system reliability and reducing waste from false triggers.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-TX0405 fiber-optic cable is available for immediate purchase, ideal for industrial automation and sensing applications.
