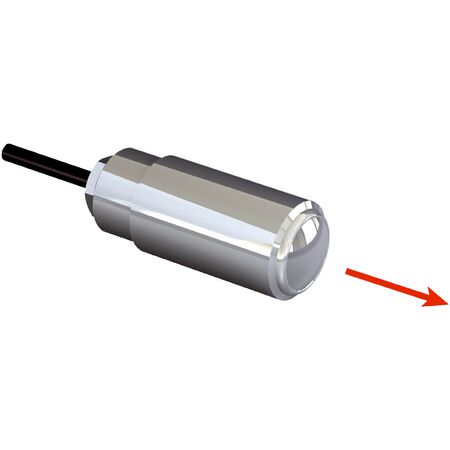

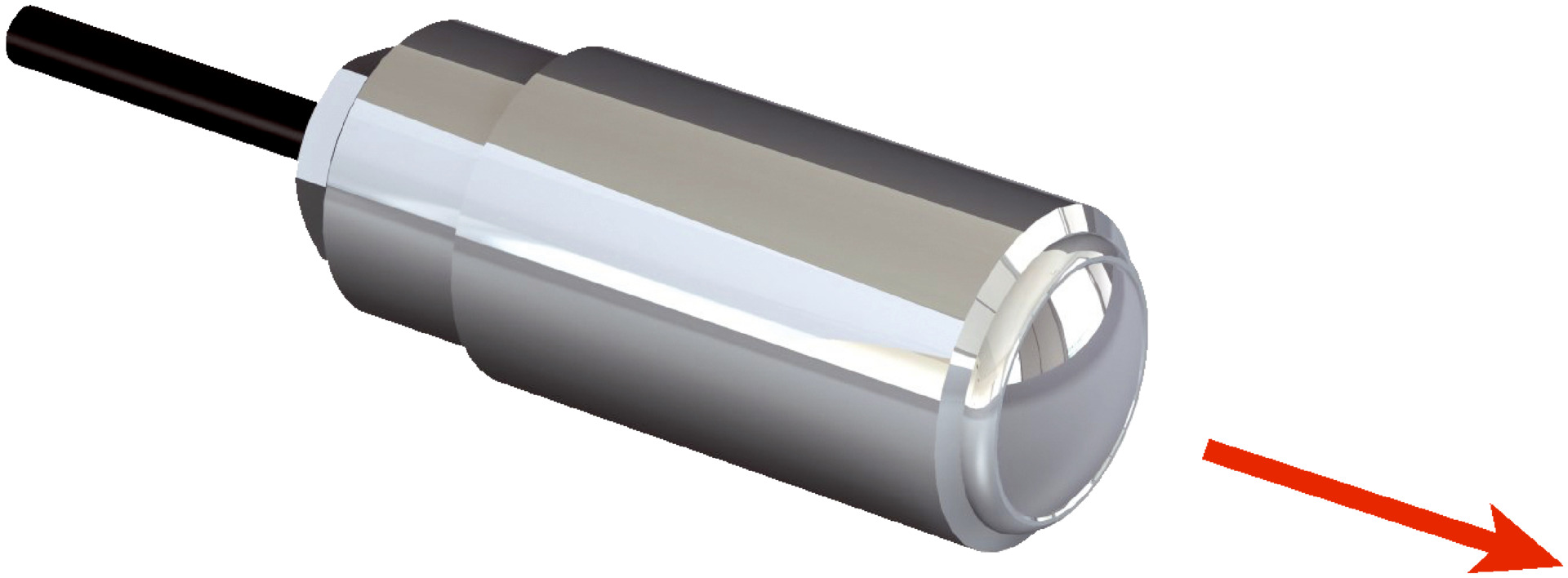

Fiber Optic Sensor Cable LL3-TX02-01 | Through-Beam System | Stainless Steel Construction | 0.5 mm Detection | by SICK
The Fiber Optic Sensor Cable LL3-TX02-01 features a through-beam system with a sender and receiver, designed for precise object detection in industrial automation. With a minimal object diameter of just 0.5 mm and a durable stainless steel construction, this sensor cable is perfect for standard sensing applications and compatible with various fiber-optic amplifiers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Bracket, fiber head, and mounting material: Stainless steel V4A (1.4404, 316L)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Minimal object diameter: 0.5 mm
- Optical fiber head angle of dispersion: 11.42°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Optical fiber compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Included with delivery: Mounting, 4 x M12 hexagon nuts, FC fiber cutter (5304141)
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M12
- Fiber length: 1000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.5 mm Single fiber
- Sheath material: Polyethylene (PE) / Polyvinylchloride (PVC)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +60 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 2,000 mm, 70 µs - 7.5 mm, 250 µs - 13.5 mm, 2 ms - 27 mm, 8 ms - 40,000 mm
- Dimensions (H x L x W): 12mm x 1000mm x 12mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with threaded sleeve design
- Bracket material, fiber head, and mounting material made of stainless steel V4A (1.4404, 316L)
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Minimal object diameter detection of 0.5 mm
- Optical fiber head with 11.42° angle of dispersion and integrated lens
- Optical fiber cable can be shortened without adapter end sleeves
- Mounting included with 4 x M12 hexagon nuts and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical wiring standards.
Applications
- Standard sensing applications requiring fiber-optic cables
- Industrial automation and object detection
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel construction enhances product lifespan, reducing waste
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TX02-01 Fiber-Optic Cable is available for immediate purchase, ideal for industrial sensing and automation applications.
