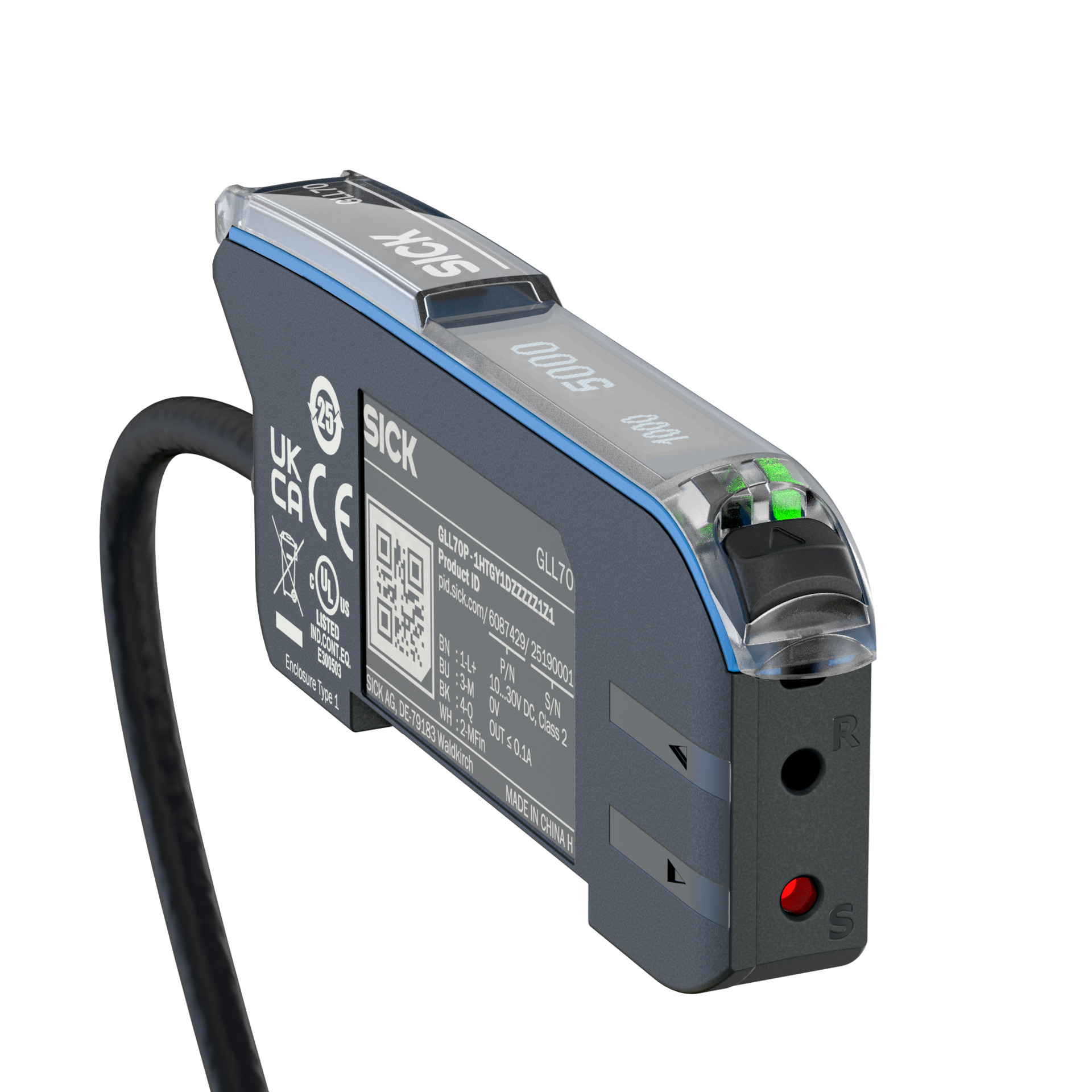

Fiber-Optic Sensor GLL70P-1HTGY1DZZZZZ1Z1 | 10 kHz Switching Frequency | IP50 Rated | by SICK
The GLL70P-1HTGY1DZZZZZ1Z1 fiber-optic sensor is designed for industrial automation, featuring a high switching frequency of up to 10 kHz and a robust IP50-rated housing. With a fast response time of ≤ 50 µs and adjustable sensing range, it's perfect for object detection and quality control in manufacturing processes, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fiber-Optic Sensor GLL70P-1HTGY1DZZZZZ1Z1 | 10 kHz Switching Frequency | IP50 Rated | by SICK
Brand: SICK
SKU: 6087429
Alternatively Known As: Fiber optic amplifier sensor, Fiber optic sensor amplifier, SICK fiber optic sensor, GLL70P fiber optic amplifier
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 50 mA
- Output type: 1 PNP digital output, max 100 mA
- Response time: ≤ 50 µs
- Switching frequency: up to 10 kHz
- LED wavelength: 660 nm visible red light
- Protection class: III
- Enclosure rating: IP50
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic (PC)
- Cable: 4-wire, 2 m length, PVC insulated
- Weight: Approx. 74 g
- Dimensions (H x L x W): 33mm x 82mm x 11mm
- Weight: 0.1 kg
Key Features
- Stand-alone fiber-optic amplifier with visible red LED light source
- Adjustable sensing range depending on optical fiber cable used
- LED indicators for power, output status, and teach-in functions
- High switching frequency up to 10 kHz with fast response time ≤ 50 µs
- Robust plastic housing with IP50 protection rating
- Wide ambient operating temperature range from -25 °C to +55 °C
- Multiple time functions including switch-on delay and impulse
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- Quality control in manufacturing processes
- Material handling and packaging systems
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Long LED service life of approximately 100,000 hours reduces waste
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GLL70P-1HTGY1DZZZZZ1Z1 fiber-optic amplifier sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
