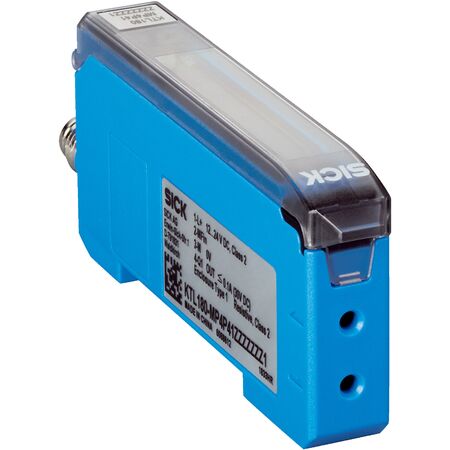

Fiber-Optic Sensor KTL180-MP4P41ZZZZZ | 31.2 kHz Switching Frequency | IP50 Rated | by SICK
The KTL180-MP4P41ZZZZZ fiber-optic sensor is designed for industrial automation, featuring a 31.2 kHz switching frequency and a sensing range of up to 30 mm. With a robust VISTAL® housing and multiple teach-in modes, it ensures reliable object detection and machine safety. Ideal for process control applications, this sensor offers low power consumption and protection against reverse polarity and short-circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC with ≤ 10% ripple
- Current consumption: ≥ 50 mA at 24 V
- Switching frequency: 31.2 kHz
- Response time: 16 µs
- Jitter: 8 µs
- Number of switching outputs: 1 PNP output
- Switching mode: Light/dark switching
- Output current max: 100 mA
- Input types: Blanking input and light/dark input
- Retention time: 25 ms non-volatile memory
- Protection: Reverse polarity, short-circuit, overcurrent, interference pulse suppression
- Housing material: VISTAL®
- Connection: Male M8, 4-pin connector
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP50
- Safety standards: UL File No. EN 60947-5-2
- Dimensions (H x L x W): 33mm x 72mm x 11mm
- Weight: 0.1 kg
Key Features
- LED status display with dual 4-character digital displays showing set and actual values simultaneously
- Sensing range up to 30 mm with proximity system
- White LED light source with approx. 65° angle of dispersion
- 1-point, 2-point, and dynamic teach-in modes
- Adjustable delay time and multi-function input
- Stand-alone mode operation
- Protection class III with reverse polarity, short-circuit, and overcurrent protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Fiber-optic sensing applications
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable housing material (VISTAL®) for long service life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTL180-MP4P41ZZZZZ fiber-optic sensor is available for immediate purchase, ideal for industrial automation and fiber-optic sensing applications.
