Trade Discount 17%

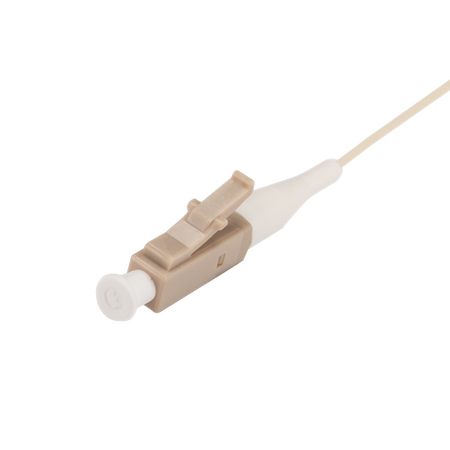

![PIGTAIL, FIBRE OM4 LC MULTI-MODE, 2m [12]PK COLOURS](https://d35gtgjy55l0bn.cloudfront.net/images/detailed/734/1402444_FPT-OM4LC-12__fptom4lc12xx_550.png?t=1772029463 "PIGTAIL, FIBRE OM4 LC MULTI-MODE, 2m [12]PK COLOURS")

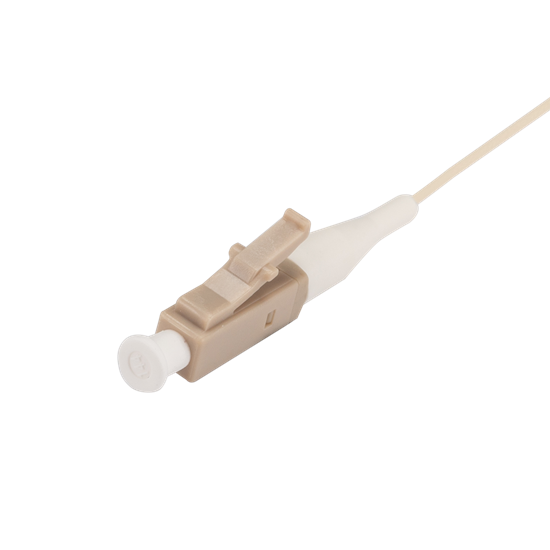

Fibre OM4 LC Multi-Mode Pigtail | 2m Length | 12 Colour-Coded Pack | Low Insertion Loss | by Repelec
Fibre OM4 LC Multi-Mode Pigtail with a 2m length and 12 colour-coded pigtails is perfect for high-speed data transmission in data centres and telecommunications. Designed for reliable connections with low insertion loss and high return loss, this pack is ideal for fusion splicing and patch panel terminations, ensuring efficient network performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre OM4 LC Multi-Mode Pigtail | 2m Length | 12 Colour-Coded Pack | Low Insertion Loss | by Repelec
Brand: Repelec
SKU: DYNFPT-OM4LC-12
Alternatively Known As: OM4 LC Fibre Pigtail, Fibre Optic Pigtail 12 Pack, LC Multi-Mode Pigtail, OM4 Fibre Patch Lead, Colour Coded Fibre Pigtails
Technical Specifications
- Fibre Type: OM4 multi-mode
- Connector: LC (Lucent Connector)
- Length: 2 metres
- Pack Quantity: 12 (colour-coded)
- Core/Cladding Diameter: 50/125μm
- Insertion Loss: ≤0.3dB
- Return Loss: ≥35dB
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Operating Temperature: -20°C to +70°C
- Complies with IEC 61754-20 (LC connector standard)
- Dimensions (H x L x W): 2mm x 2000mm x 2mm
- Weight: 0.3 kg
Key Features
- OM4 multi-mode fibre for high-speed data transmission
- LC connector for reliable and secure connections
- 2 metre length for flexible installation
- 12 colour-coded pigtails for easy identification
- Low insertion loss and high return loss
- Ideal for fusion splicing and patch panel terminations
Professional Installation Requirements
- Installation should be performed by a qualified technician experienced in fibre optic splicing and termination to ensure optimal performance and safety.
Applications
- Data centres
- Telecommunications rooms
- Enterprise network backbones
- Server rooms
- Fibre optic patching and splicing
- LAN and WAN environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports high-speed data transmission, reducing the need for multiple cables and minimising material waste.
- Enables efficient network upgrades, extending infrastructure lifespan and reducing electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec OM4 LC Multi-Mode Fibre Pigtail 2m 12-Pack is available for immediate purchase. Ideal for high-speed data centre, telecom, and enterprise network applications.
