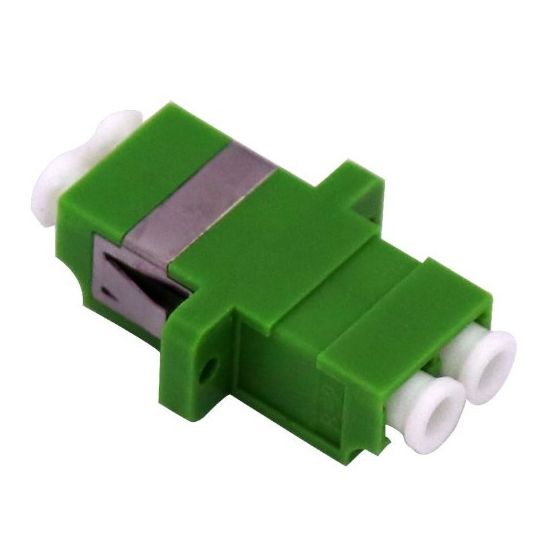

Fibre Optic Adapter LC/APC Duplex | Single-Mode | Ceramic Sleeve | Green Housing | by Repelec
Fibre Optic Adapter LC/APC Duplex designed for single-mode applications, featuring a ceramic alignment sleeve for low insertion loss and high precision. Ideal for telecommunications networks and data centers, this adapter ensures optimal performance with a durable snap-in design, making installation quick and easy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Optic Adapter LC/APC Duplex | Single-Mode | Ceramic Sleeve | Green Housing | by Repelec
Brand: Repelec
SKU: DYNA-FIBLCAPC-SM
Alternatively Known As: LC/APC Duplex Fiber Adapter, LC/APC Coupler, LC/APC Ceramic Adapter, Single-Mode LC/APC Adapter, Green LC/APC Duplex Adapter
Technical Specifications
- Type: LC/APC to LC/APC Duplex Adapter
- Mode: Single-mode
- Sleeve Material: Ceramic
- Housing Color: Green
- Insertion Loss: ≤0.2dB
- Return Loss: ≥50dB
- Durability: >1000 mating cycles
- Operating Temperature: -40°C to +75°C
- RoHS compliant
- Dimensions (H x L x W): 9mm x 25mm x 9mm
- Weight: 0.1 kg
Key Features
- Single-mode duplex LC/UPC to LC/UPC fiber optic adapter
- Ceramic alignment sleeve for high precision and low insertion loss
- Green housing for APC (Angled Physical Contact) compatibility
- High durability and repeatability
- Low insertion loss and high return loss
- Snap-in design for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified technician experienced in fiber optic cabling to ensure optimal performance and safety.
Applications
- Telecommunications networks
- Data centers
- FTTx (Fiber to the x) installations
- LAN and WAN fiber optic cabling
- Broadcast and CATV systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables high-speed, energy-efficient data transmission with minimal signal loss
- Supports long-lasting fiber optic infrastructure, reducing electronic waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Repelec DYNA-FIBLCAPC-SM Fibre Optic Adapter is available for immediate purchase. Ideal for telecommunications, data centers, and high-speed fiber optic networks.
