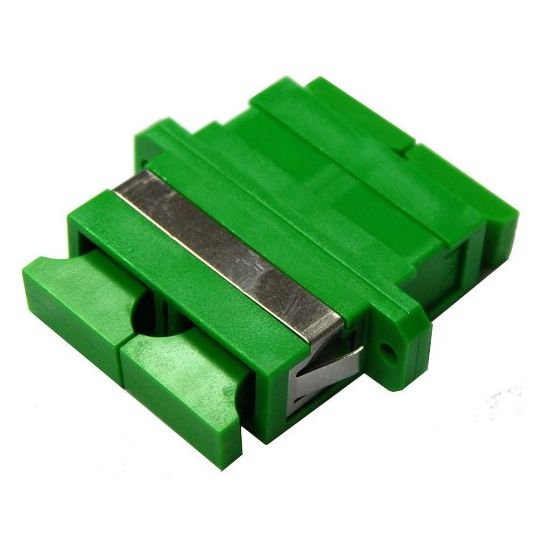

Fibre Optic Adapter SCA/SCA Duplex | Ceramic Sleeve | Green Housing | by Repelec
The Fibre Optic Adapter SCA/SCA Duplex is designed for single-mode applications, featuring a high-precision ceramic sleeve that ensures low insertion loss and reliable connections. With its green housing for APC connectors, this adapter is perfect for telecommunications networks, data centers, and high-speed fiber optic installations, providing stable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Optic Adapter SCA/SCA Duplex | Ceramic Sleeve | Green Housing | by Repelec
Brand: Repelec
SKU: DYNA-FIBSCAPC-SM
Alternatively Known As: SC APC Duplex Adapter, SC/APC Fiber Optic Coupler, Single-Mode SC/APC Adapter, Green SC/APC Duplex Connector
Technical Specifications
- Type: Duplex SCA/SCA (APC) Single-Mode Adapter
- Sleeve Material: Ceramic
- Housing Color: Green (APC)
- Insertion Loss: ≤0.2dB
- Return Loss: ≥60dB
- Compatibility: SC/APC connectors
- Operating Temperature: -40°C to +75°C
- Dimensions (H x L x W): 9mm x 27mm x 17mm
- Weight: 0.1 kg
Key Features
- Duplex SCA/SCA (APC) single-mode fiber optic adapter
- High-precision ceramic sleeve for low insertion loss
- Green housing for APC (Angled Physical Contact) connectors
- Ensures reliable and stable fiber connections
- Suitable for high-speed and high-bandwidth applications
Professional Installation Requirements
- Installation should be performed by a qualified technician experienced in fiber optic systems to ensure optimal performance and safety.
Applications
- Telecommunications networks
- Data centers
- FTTx (Fiber to the x) installations
- CATV (Cable Television) systems
- LAN and WAN fiber optic connections
- Test equipment
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables high-speed data transmission with minimal signal loss, supporting efficient network infrastructure.
- Durable ceramic sleeve reduces the need for frequent replacements, minimizing electronic waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Repelec Fibre Optic Adapter SCA/SCA Duplex Single-Mode Ceramic Green is available for immediate purchase. Ideal for telecommunications, data centers, and high-speed fiber optic networks.
