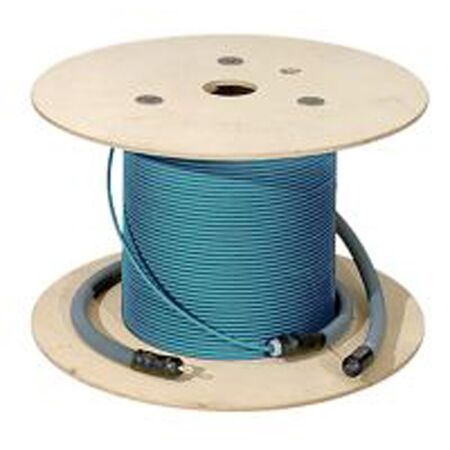

Fibre Optic Cable 10 Gb s OM4 LSZH Aqua Legrand
Legrand Fibre Optic Cable features 10 Gb s, OM4, LSZH. Suited for backbone and structured cabling runs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Fibre Type: Graded-index multimode OM4
- Core Diameter: 50 µm
- Cladding Diameter: 125 µm
- Optimized Wavelengths: 850 nm and 1300 nm
- Sheath: LSZH (Low Smoke Zero Halogen)
- Fibre Colour Code: FOTAG
- Standards Compliance: EN 50173-2, ISO IEC 11801
- Dimensions (H x L x W): 20 mm x 1000000 mm x 20 mm
- Weight: 10 kg
Key Features
- Graded-index multimode fibre optimized for 10 Gb/s transmission speeds
- 50 µm core diameter and 125 µm cladding diameter
- Designed for use at 850 nm and also suitable for 1300 nm
- Easy Strip design for simplified installation
- LSZH sheath for low smoke zero halogen safety
Professional Installation Requirements
- Professional installation by certified fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centers and enterprise networks
- High-speed 10 Gb/s transmission systems
- Indoor fibre optic cabling infrastructure
Standards & Compliance
- Complies with AS/NZS 3080 for telecommunications cabling installation
Environmental Benefits
- LSZH sheath reduces toxic smoke and halogen emissions in case of fire
- Supports energy-efficient high-speed data transmission
Warranty Information
1 Year Warranty
Available Now
Legrand LCS³ 6 Fibre OM4 Multi Mode Tight Buffer Cable 1000m Aqua is available now for immediate purchase. Ideal for high-speed indoor digital infrastructure and data center applications.
FAQ
Q: What transmission speeds and wavelengths does the Legrand 32666 OM4 fibre cable support?
A: The 32666 is graded-index OM4 multimode fibre optimised for 10 Gb/s transmission, designed for use at 850 nm and also suitable for 1300 nm — making it well suited to data centres, enterprise networks, and high-speed indoor fibre optic cabling infrastructure.
Q: What compliance standards does the Legrand 32666 meet?
A: The 32666 complies with EN 50173-2, ISO IEC 11801, and AS/NZS 3080 for telecommunications cabling installation, with professional installation by certified fibre optic technicians recommended to ensure optimal performance and compliance with standards.
For larger-scale installations, the OM4 multi mode fibre cable 12 fibre 1000m LSZH aqua is available from the same Legrand range for higher core count requirements.
To terminate this cable at the rack, the fibre optic wall box 2 panel 24 fibre lockable provides a suitable enclosure for multimode fibre terminations.
For field termination of multimode fibre, the fibre pre-polished LC OM1 connector is a compatible termination option for indoor fibre installations.
