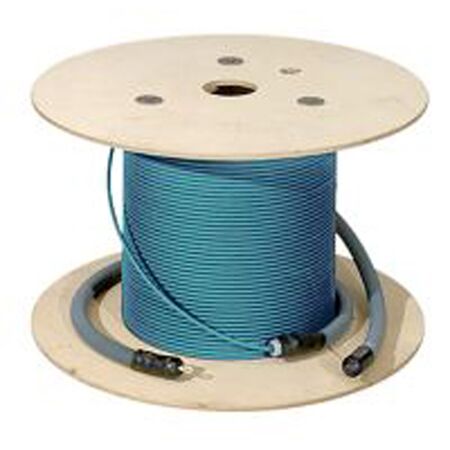

Fibre Optic Cable OM4 1000m LSZH Aqua Legrand
Legrand Fibre Optic Cable features OM4, 1000m, LSZH. Suited for backbone and structured cabling runs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Fibre Type: Graded-index multimode OM4
- Core Diameter: 50 µm
- Cladding Diameter: 125 µm
- Optimized Wavelengths: 850 nm and 1300 nm
- Sheath: LSZH (Low Smoke Zero Halogen)
- Fibre Colour Code: FOTAG
- Standard Compliance: EN 50173-2, ISO IEC 11801
- Dimensions (H x L x W): 20 mm x 1000000 mm x 20 mm
- Weight: 12 kg
Key Features
- Graded-index multimode fibre optimized for 10 Gb/s transmission speeds
- 50 µm core diameter and 125 µm cladding diameter
- Designed for use at 850 nm and also usable at 1300 nm
- Easy Strip technology for simplified installation
- LSZH sheath for low smoke zero halogen safety
Professional Installation Requirements
- Professional installation by certified fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centers and enterprise networks
- High-speed 10 Gb/s transmission systems
- Indoor fibre optic cabling infrastructure
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH sheath reduces toxic smoke and halogen emissions in case of fire
- Supports energy-efficient high-speed data transmission
Warranty Information
1 Year Warranty
Available Now
Legrand LCS³ 12 Fibre OM4 Multi Mode Tight Buffer Cable 1000m Aqua is available now for immediate purchase. Ideal for high-speed indoor digital infrastructure and data center applications.
FAQ
Q: What transmission speeds and wavelengths does the Legrand 32667 OM4 fibre cable support?
A: The 32667 is graded-index OM4 multimode fibre optimised for 10 Gb/s transmission speeds, with designed wavelengths at 850 nm and also usable at 1300 nm — suited to data centres, enterprise networks, and high-speed indoor fibre optic cabling infrastructure.
Q: Why does the Legrand 32667 use an LSZH sheath?
A: The LSZH (Low Smoke Zero Halogen) sheath reduces toxic smoke and halogen emissions in the event of fire, making the 32667 well suited to indoor fibre optic cabling infrastructure where fire safety compliance is a consideration, particularly in data centres and enterprise environments.
For a smaller reel quantity, the OM4 multi mode fibre cable 6 fibre 10Gb/s LSZH aqua is available from the same Legrand range.
To terminate this cable, the fibre pre-polished SC OM3 connector provides a field-termination option for indoor multimode fibre installations.
For patch panel management, the fibre optic wall box 1/2 panel 24f via SC/ST 48f via LC is suited to organising multimode fibre terminations in rack and wall-mount enclosures.
