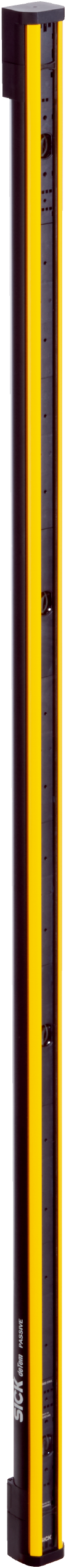

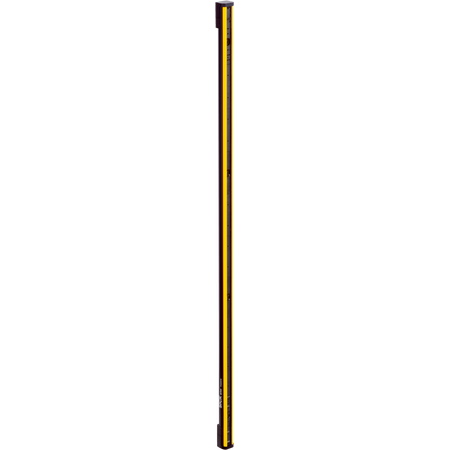

Fibre Optic Deflection Sensor PSN02-2301 | Active/Passive | IP65 & IP67 Rated | 3.2m Scanning Range | by SICK
The Fibre Optic Deflection Sensor PSN02-2301 is designed for industrial applications requiring precise fibre-optic sensing. With an active/passive functional principle and a scanning range of 3.2 meters, this sensor features four beams with 300 mm separation for accurate detection. Built with a robust aluminum housing and a scratch-resistant polycarbonate front screen, it ensures durability and high ingress protection ratings of IP65 and IP67, making it ideal for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: deTem4 A/P Passive Fibre Optic Sensor, SICK Fibre Optic Deflection Unit, PSN02-2301 Sensor
Technical Specifications
- Product version: deTem4 A/P
- Functional principle: Active/passive
- System part: Passive unit
- Type of diversion: Fibre-optic deflection
- Scanning range category: Low scanning range
- Scanning range: 3.2 m
- Number of beams: 4
- Beam separation: 300 mm
- Housing cross-section: 30.7 mm x 34 mm
- Housing material: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Ambient operating temperature: –30 °C to +55 °C
- Storage temperature: –30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Class: 3M4 (IEC TR 60721-4-3)
- Dimensions (H x L x W): 34mm x 150mm x 30.7mm
- Weight: 0.845 kg
Key Features
- Active/passive functional principle
- Passive unit system part
- Fibre-optic deflection type of diversion
- Low scanning range category with 3.2 m scanning range
- Four beams with 300 mm beam separation
- Robust aluminum extruded profile housing with polycarbonate scratch-resistant front screen
- High ingress protection rating IP65 and IP67
- Wide ambient operating temperature range from –30 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Normal industrial environment applications requiring fibre-optic deflection sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient passive sensing technology
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK PSN02-2301 deTem4 A/P Passive Fibre-Optic Deflection Unit is available for immediate purchase, ideal for industrial sensing applications requiring reliable fibre-optic detection.
