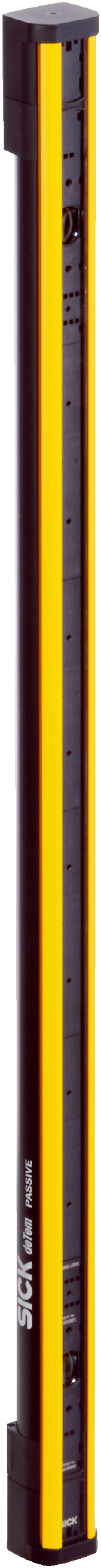

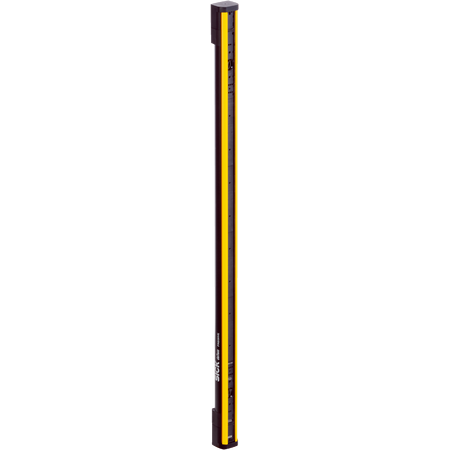

Fibre Optic Deflection Sensor PSN01-2501 | Active/Passive Functionality | IP65 & IP67 Rated | by SICK
The Fibre Optic Deflection Sensor PSN01-2501 is designed for normal industrial environments, featuring an active/passive functional principle and a scanning range of 3.2 m. With robust IP65 and IP67 ratings, this sensor ensures reliable performance in challenging conditions, making it ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: deTem4 A/P Passive Fibre Optic Sensor, SICK Fibre Optic Deflection Sensor, PSN01-2501 Sensor Unit
Technical Specifications
- Product version: deTem4 A/P
- Application: Normal industrial environment
- Functional principle: Active/passive
- System part: Passive unit
- Type of diversion: Fibre-optic deflection
- Scanning range category: Low scanning range
- Scanning range: 3.2 m
- Number of beams: 2
- Beam separation: 500 mm
- Housing cross-section: 30.7 mm x 34 mm
- Housing material: Aluminum extruded profile
- Front screen: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Ambient operating temperature: –30 °C to +55 °C
- Storage temperature: –30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Class: 3M4 (IEC TR 60721-4-3)
- Dimensions (H x L x W): 34mm x 150mm x 30.7mm
- Weight: 0.52 kg
Key Features
- Active/passive functional principle
- Passive unit system part
- Fibre-optic deflection type of diversion
- Low scanning range category with 3.2 m scanning range
- Two beams with 500 mm beam separation
- Housing made of aluminum extruded profile
- Polycarbonate front screen with scratch-resistant coating
- Robust IP65 and IP67 enclosure rating
- Wide ambient operating temperature range from –30 °C to +55 °C
- High vibration and shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Normal industrial environment applications requiring active/passive fibre-optic deflection sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient passive sensing technology
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK PSN01-2501 deTem4 A/P Passive Fibre-Optic Deflection Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
