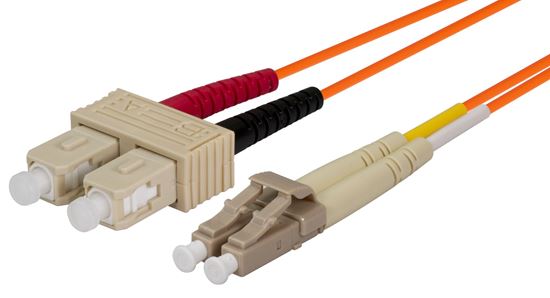

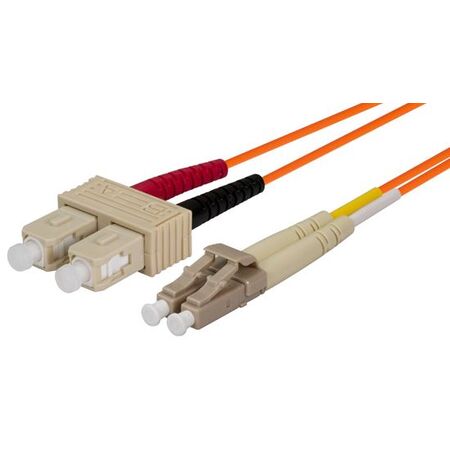

Fibre Optic Lead Duplex Multimode 62.5U LC/SC OM1 | Low Insertion Loss | 1m Length | Orange Jacket | @Pack by Repelec
Fibre optic lead duplex multimode 62.5U LC/SC OM1 is designed for high-speed data transmission in data centres and telecommunications rooms. With a low insertion loss of ≤0.3dB and a robust orange jacket for OM1 identification, this 1m cable ensures reliable connectivity for LAN and WAN networks. Ideal for professional installations, it supports efficient patching and server connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Optic Lead Duplex Multimode 62.5U LC/SC OM1 | Low Insertion Loss | 1m Length | Orange Jacket | @Pack by Repelec
Brand: Repelec
SKU: DYNFL-LCSC-1
Alternatively Known As: OM1 fibre patch lead, LC to SC fibre cable, duplex multimode fibre optic lead, 62.5/125 fibre patch cord, OM1 LC-SC patch cable
Technical Specifications
- Fibre Type: Duplex Multimode OM1 (62.5/125µm)
- Connector Type: LC to SC
- Cable Length: 1 metre
- Jacket Colour: Orange (OM1 standard)
- Insertion Loss: ≤0.3dB
- Return Loss: ≥20dB
- Operating Temperature: -20°C to +70°C
- RoHS compliant
- Dimensions (H x L x W): 2mm x 1000mm x 2mm
- Weight: 0.1 kg
Key Features
- Duplex multimode fibre optic cable
- 62.5/125µm OM1 core for reliable data transmission
- LC to SC connectors for versatile connectivity
- Low insertion loss and high return loss
- 1 metre length for flexible patching
- Orange jacket for OM1 identification
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure optimal performance and to prevent damage to fibre connectors.
Applications
- Data centres
- Telecommunications rooms
- LAN and WAN networks
- Server connections
- Patch panels
- High-speed data transmission environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports high-speed data transfer, reducing the need for multiple cables and minimizing electronic waste.
- Fibre optic technology enables lower power consumption compared to copper alternatives.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec Fibre Optic Duplex Multimode 62.5/125 OM1 LC to SC Lead (1m) is available for immediate purchase. Ideal for data centres, server rooms, and high-speed network patching.
