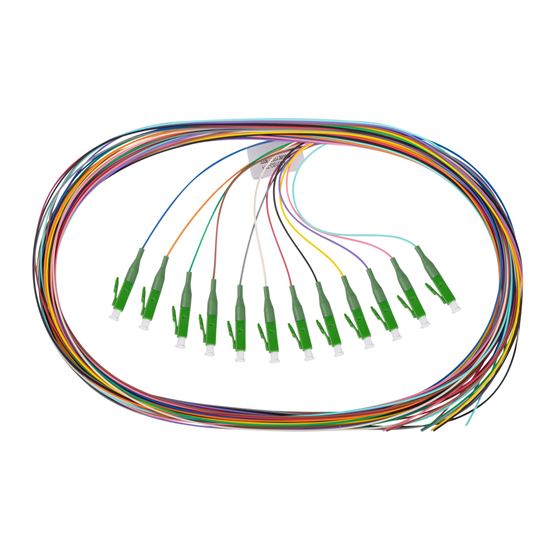

Fibre OS2 LCA Single-Mode Pigtail | 2m Length | 12 Colour-Coded Pigtails | LSZH Jacket | @Pack of 12 | by Repelec
Fibre OS2 LCA Single-Mode Pigtail with a 2m length and 12 different colour-coded pigtails for easy identification—ideal for telecommunications and data centre applications. Built for high-speed data transmission, this pigtail features a low smoke zero halogen (LSZH) jacket for enhanced safety and is factory pre-terminated for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre OS2 LCA Single-Mode Pigtail | 2m Length | 12 Colour-Coded Pigtails | LSZH Jacket | @Pack of 12 | by Repelec
Brand: Repelec
SKU: DYNFPT-OS1LCA-12
Alternatively Known As: Fibre optic pigtail, OS2 LC/APC pigtail, Single-mode fibre pigtail, Colour-coded fibre pigtail, LC/APC fibre patch lead
Technical Specifications
- Fibre type: OS2 single-mode
- Connector type: LC/APC (LCA)
- Length: 2 metres
- Jacket: LSZH (Low Smoke Zero Halogen)
- Pack: 12 pigtails, each with a different colour
- Insertion loss: ≤0.3dB
- Return loss: ≥60dB
- Core diameter: 9/125μm
- Dimensions (H x L x W): 2mm x 2000mm x 2mm
- Weight: 0.12 kg
Key Features
- OS2 single-mode fibre for long-distance, high-speed data transmission
- LCA (LC/APC) connector for low insertion loss and high return loss
- 2 metre length for flexible installation
- 12 different colour-coded pigtails for easy identification
- Factory pre-terminated and tested for performance
- Low smoke zero halogen (LSZH) jacket for enhanced safety
Professional Installation Requirements
- Installation should be performed by a qualified technician experienced in fibre optic terminations and testing.
Applications
- Telecommunications networks
- Data centres
- FTTx (Fibre to the x) installations
- LAN/WAN networking
- Patch panels and distribution frames
- Industrial and commercial fibre optic cabling
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low smoke zero halogen (LSZH) jacket reduces toxic emissions in case of fire
- Supports high-speed data transmission, enabling efficient and energy-saving network infrastructure
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec Fibre OS2 LCA Single-Mode Pigtail 2m 12-Pack is available for immediate purchase. Ideal for telecommunications, data centres, and high-performance fibre optic network installations.
