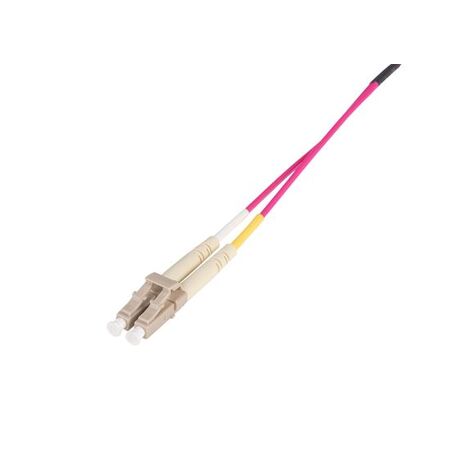

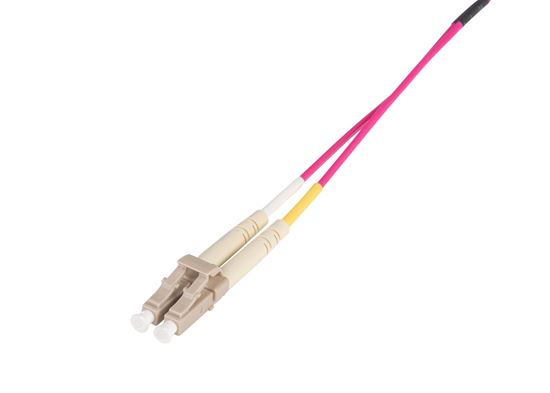

Fibre Patch Lead LC/LC Duplex OM4 50U | 20m Length | High-Speed Data Transmission | LSZH Jacket | @Pack by Repelec
The Fibre Patch Lead LC/LC Duplex OM4 50U is designed for high-speed data transmission, featuring a 20m length and OM4 multimode fibre for optimal performance. Ideal for data centres and enterprise networking, this patch lead ensures secure connections with low insertion loss and high return loss, making it perfect for 10/40/100Gbps Ethernet applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC/LC Duplex OM4 50U | 20m Length | High-Speed Data Transmission | LSZH Jacket | @Pack by Repelec
Brand: Repelec
SKU: DYNFL-LCLCOM4-20
Alternatively Known As: OM4 Fibre Patch Lead, LC to LC Duplex Fibre Cable, 20m Multimode Fibre Optic Patch Cord, OM4 LC-LC Patch Cable
Technical Specifications
- Connector Type: LC to LC Duplex
- Fibre Type: OM4 Multimode 50/125μm
- Length: 20 metres
- Jacket: LSZH (Low Smoke Zero Halogen)
- Bandwidth: 4700 MHz·km
- Maximum Data Rate: Up to 100Gbps (depending on equipment)
- Insertion Loss: ≤0.3dB
- Return Loss: ≥30dB
- Colour: Aqua
- Dimensions (H x L x W): 6mm x 20000mm x 3mm
- Weight: 0.15 kg
Key Features
- 20 metre length for extended reach
- OM4 multimode fibre for high-speed data transmission
- LC to LC duplex connectors for secure and reliable connections
- Low insertion loss and high return loss
- Suitable for 10/40/100Gbps Ethernet applications
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety
Professional Installation Requirements
- Installation by a qualified network technician is recommended to ensure optimal performance and compliance with network standards.
Applications
- Data centres
- Enterprise networking
- Telecommunications rooms
- Server farms
- High-speed backbone links
- SAN (Storage Area Network) environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic emissions in case of fire
- Supports high-speed data transfer, enabling efficient network infrastructure and reducing energy consumption per bit transferred
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec LC/LC Duplex OM4 50U 20m Fibre Patch Lead is available for immediate purchase. Ideal for high-speed data centre, enterprise, and telecommunications applications.
