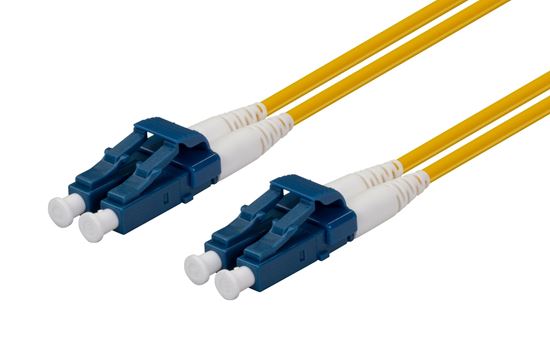

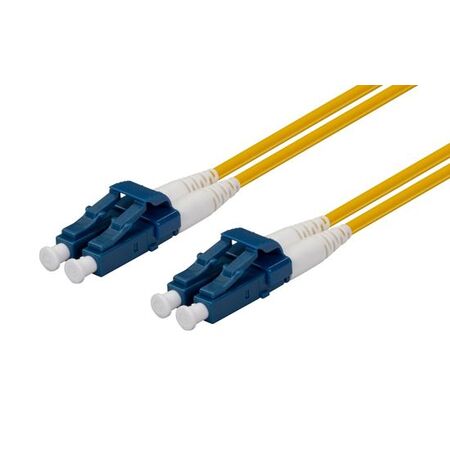

Fibre Patch Lead LC/LC Duplex Single-Mode OS2 9U | 3m Length | Low Insertion Loss | Yellow LSZH Jacket | @Pack by Repelec

BRAND: Repelec
SKU: DYNFSM-LCLC-3
$38.80 List price: $47.00
+ −
30 Days Return Electricians Unlock Trade Access
The Fibre Patch Lead LC/LC Duplex Single-Mode OS2 9U is designed for high-speed data transmission in data centres and enterprise networks. With a 3m length and low insertion loss, this cable ensures reliable connectivity for telecommunications applications. Its yellow LSZH jacket provides safety and easy identification, making it ideal for professional installations.

Product Name/Title: Fibre Patch Lead LC/LC Duplex Single-Mode OS2 9U | 3m Length | Low Insertion Loss | Yellow LSZH Jacket | @Pack by Repelec

Brand: Repelec

SKU: DYNFSM-LCLC-3

Alternatively Known As: LC to LC Fibre Patch Lead, OS2 Single Mode Fibre Cable, Duplex Fibre Optic Patch Cord, 3m LC-LC Fibre Lead, Fibre Optic Jumper

Technical Specifications
  • Connector Type: LC/LC Duplex
  • Fibre Type: Single-mode OS2 (9/125μm)
  • Cable Length: 3 metres
  • Jacket Material: LSZH (Low Smoke Zero Halogen)
  • Insertion Loss: ≤0.3dB
  • Return Loss: ≥50dB
  • Operating Wavelength: 1310nm/1550nm
  • Colour: Yellow
  • RoHS compliant
  • Dimensions (H x L x W): 2mm x 3000mm x 2mm
  • Weight: 0.1 kg
Key Features
  • 3 metre length for flexible installations
  • LC to LC duplex connectors for secure, high-density connections
  • Single-mode OS2 9/125μm fibre for long-distance, high-speed data transmission
  • Low insertion loss and high return loss
  • Yellow LSZH (Low Smoke Zero Halogen) jacket for safety and easy identification
  • Factory tested and certified for performance
Professional Installation Requirements
  • Installation by a qualified technician is recommended to ensure optimal performance and compliance with network standards.
Applications
  • Data centres
  • Telecommunications rooms
  • Enterprise networking
  • High-speed fibre optic networks
  • FTTx applications
  • Server rooms
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire.
  • Supports energy-efficient, high-speed data transmission, reducing network power consumption.
Warranty Information

12 months manufacturer's warranty against defects.

Available Now

The Repelec LC/LC Duplex Single-Mode OS2 9U Fibre Patch Lead (3m) is available for immediate purchase. Ideal for high-speed data centres, enterprise networks, and telecom applications.
