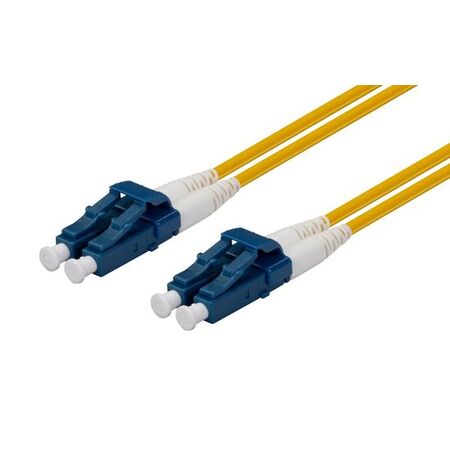

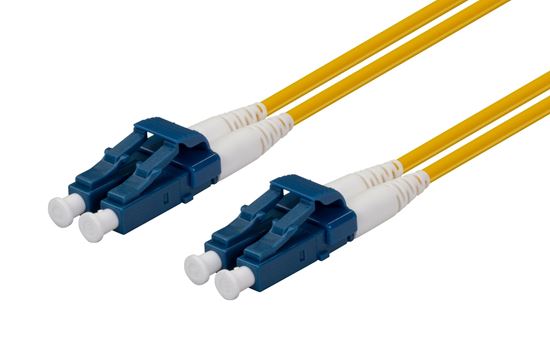

Fibre Patch Lead LC/LC Duplex Single-Mode OS2 9U | 5m Length | Low Insertion Loss | Yellow LSZH Jacket | @Pack by Repelec
The Fibre Patch Lead LC/LC Duplex Single-Mode OS2 9U is designed for high-speed data transmission in data centres and enterprise networks. With a 5m length and low insertion loss, this cable ensures optimal performance for telecommunications applications. The yellow LSZH jacket provides safety and easy identification, making it a reliable choice for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC/LC Duplex Single-Mode OS2 9U | 5m Length | Low Insertion Loss | Yellow LSZH Jacket | @Pack by Repelec
Brand: Repelec
SKU: DYNFSM-LCLC-5
Alternatively Known As: LC to LC Fibre Patch Lead, OS2 Single Mode Fibre Cable, Duplex Fibre Optic Patch Cord, 5m LC-LC Fibre Lead, Fibre Optic Jumper
Technical Specifications
- Connector Type: LC/LC Duplex
- Fibre Type: Single-mode OS2 (9/125μm)
- Cable Length: 5 metres
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Insertion Loss: ≤0.3dB
- Return Loss: ≥50dB
- Colour: Yellow
- Operating Temperature: -20°C to +70°C
- RoHS compliant
- Dimensions (H x L x W): 3mm x 5000mm x 3mm
- Weight: 0.1 kg
Key Features
- LC to LC duplex connectors for secure, high-density connections
- Single-mode OS2 9/125μm fibre for long-distance, high-speed data transmission
- Low insertion loss and high return loss for optimal performance
- 5 metre length for flexible installation
- Yellow LSZH (Low Smoke Zero Halogen) jacket for safety and easy identification
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure optimal performance and compliance with network standards.
Applications
- Data centres
- Telecommunications rooms
- Enterprise networking
- High-speed fibre optic networks
- FTTx applications
- Server rooms
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- Supports energy-efficient high-speed data transmission, reducing network power consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec LC/LC Duplex Single-Mode OS2 9U Fibre Patch Lead 5m is available for immediate purchase. Ideal for high-speed data centres, enterprise networks, and telecommunications applications.
