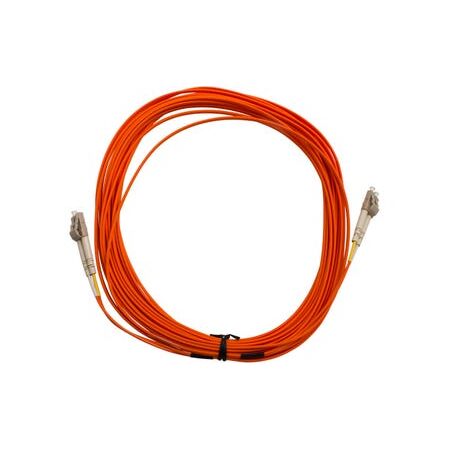

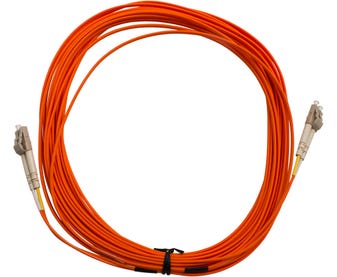

Fibre Patch Lead LC-LC OM1 | 10 Metre Length | Duplex Clip Connectors | Orange LSZH by Cabac

BRAND: CABAC
SKU: DLCLC10M-MM
$38.50 List price: $46.60
+ −
30 Days Return Delivery Options
Fibre patch lead with LC-LC OM1 connectors and a 10 metre length—ideal for high-speed data transmission. Built for network installations, with durable orange LSZH material for safety and flexibility.

Product Name/Title: Fibre Patch Lead LC-LC OM1 | 10 Metre Length | Orange LSZH | 2mm Duplex by MSS

Brand: Cabac

SKU: DLCLC10M-MM

Alternatively Known As: Fibre Optic Patch Lead, LC to LC Fibre Patch Cable, Duplex Fibre Patch Lead, OM1 Fibre Patch Lead, LSZH Fibre Cable

Technical Specifications
  • 2mm Orange LSZH Jacket
  • Duplex Clip on LC connectors
  • Polarity method 'A-to-B'
  • Performance tested to IEC 11801 and ANSI/TIA 568-3
  • Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
  • Up to 500 mating cycles (IEC 61300-2-2)
  • Dimensions (H x L x W): 5mm x 10000mm x 200mm
  • Weight: 0.05 kg
Key Features
  • Performance tested to numerous IEC standards to ensure performance exceeds test requirements
  • Range of connector types
  • Duplex Clip on LC connectors
  • LSZH Jacket in various colours
  • Available in OM1, OM3, OM4 and SM
  • Polarity method 'A-to-B' used in all standard fibre patch leads with LC duplex clips
  • Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
  • Installation by trained professionals is recommended to ensure optimal performance and compliance with industry standards.
Applications
  • Data centres
  • Telecommunications rooms
  • Fibre equipment patching
  • Premise cabling
Standards & Compliance
  • AS/CA S008
Environmental Benefits
  • Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
  • RoHS and REACH compliant, ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The MSS Fibre LC - LC OM1 10 Metre Orange LSZH 2mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications rooms, and fibre equipment patching.
