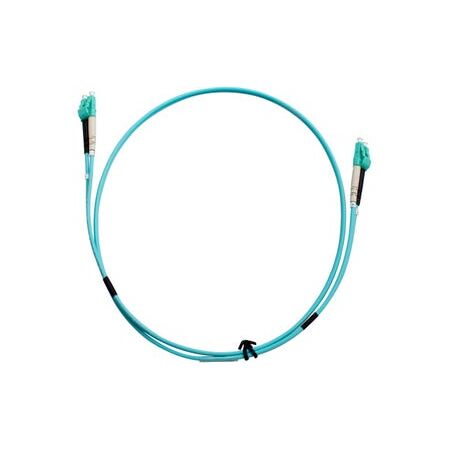

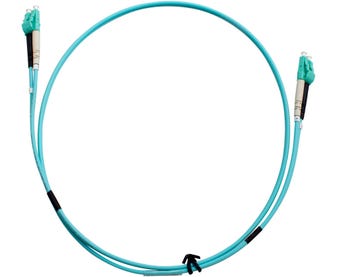

Fibre Patch Lead LC-LC OM3 1 Metre | Aqua LSZH | Duplex Clip Connectors | 500 Mating Cycles by MSS
Fibre patch lead with LC-LC connectors and OM3 performance—ideal for high-speed data transmission. Built for network installations, featuring a durable aqua LSZH jacket and 2mm duplex design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC-LC OM3 1 Metre | Aqua LSZH | 2mm Duplex by MSS
Brand: Cabac
SKU: DLCLC1M-MM3
Alternatively Known As: Fibre Optic Patch Lead, LC to LC Fibre Cable, Duplex Fibre Patch Cord, OM3 Fibre Patch Lead, LSZH Fibre Cable
Technical Specifications
- 2mm Aqua LSZH Jacket
- Duplex Clip on LC connectors
- Polarity method: A-to-B
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
- Up to 500 mating cycles (IEC 61300-2-2)
- Dimensions (H x L x W): 2mm x 1000mm x 2mm
- Weight: 0.02 kg
Key Features
- Performance tested to numerous IEC standards exceeding test requirements
- Range of connector types available
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained personnel is recommended to ensure proper handling and performance of fibre optic connections.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre LC - LC OM3 1 Metre Aqua LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centre and telecommunications applications.
