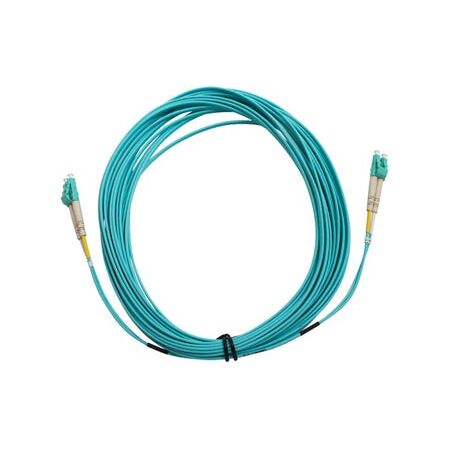

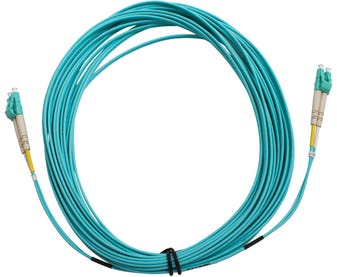

Fibre Patch Lead LC-LC OM3 | 10 Metre | Aqua LSZH | 2mm Duplex by Cabac
Fibre patch lead with LC-LC OM3 connectors and 10 metre length—ideal for high-speed data transmission. Built for network installations, featuring aqua LSZH material for safety and flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC-LC OM3 | 10 Metre | Aqua LSZH | 2mm Duplex by MSS
Brand: Cabac
SKU: DLCLC10M-MM3
Alternatively Known As: Fibre Optic Patch Lead, LC to LC Fibre Cable, OM3 Fibre Patch Cord, Duplex Fibre Patch Lead, LSZH Fibre Patch Cable
Technical Specifications
- Cable Type: Duplex Fibre Patch Lead
- Connector Type: LC to LC Duplex Clip on
- Fibre Mode: OM3
- Cable Length: 10 metres
- Jacket: 2mm Aqua LSZH
- Polarity: Method A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3, RoHS, REACH
- Dimensions (H x L x W): 5mm x 10000mm x 200mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards exceeding test requirements
- Range of connector types available
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre LC - LC OM3 10 Metre Aqua LSZH 2mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications rooms, and fibre equipment patching.
