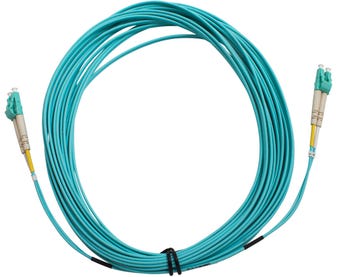

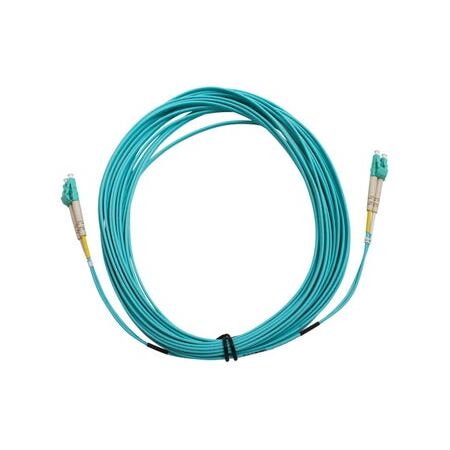

Fibre Patch Lead LC-LC OM3 | 15 Metre | Aqua LSZH | 2mm Duplex by Cabac
Fibre patch lead LC-LC OM3 with a 15 metre length and aqua LSZH jacket—ideal for high-speed data transmission. Built for network installations, with a durable 2mm duplex design for reliable connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC-LC OM3 | 15 Metre | Aqua LSZH | 2mm Duplex by MSS
Brand: Cabac
SKU: DLCLC15M-MM3
Alternatively Known As: LC to LC Fibre Patch Lead, OM3 Fibre Patch Cable, Duplex Fibre Optic Cable, LSZH Fibre Patch Lead
Technical Specifications
- Fibre Type: OM3 Multimode
- Connector Type: Duplex LC to LC
- Cable Jacket: 2mm Aqua LSZH
- Polarity: A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Dimensions (H x L x W): 5mm x 15000mm x 200mm
- Weight: 0.1 kg
Key Features
- Performance tested to numerous IEC standards exceeding test requirements
- Range of connector types available
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre LC - LC OM3 15 Metre Aqua LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centre and telecommunications applications.
