Trade Discount 17%

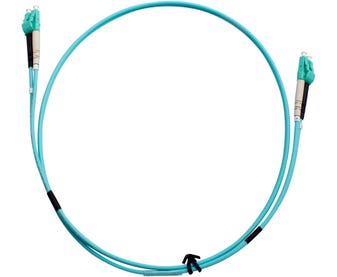

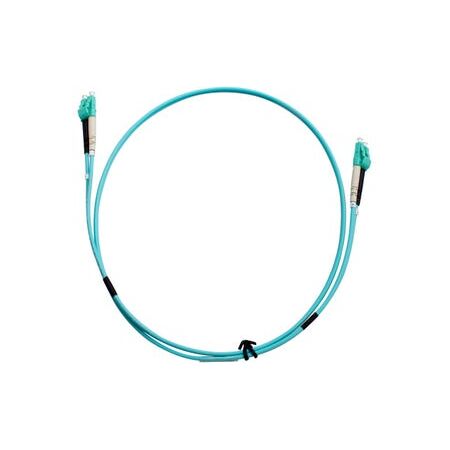

Fibre Patch Lead LC-LC OM3 3 Metre | Aqua LSZH | 2mm Duplex | High Performance by Cabac
Fibre patch lead with LC-LC connectors and OM3 performance—ideal for high-speed data transmission. Built for networking and telecommunications, featuring a durable aqua LSZH jacket and 2mm duplex design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC-LC OM3 3 Metre | Aqua LSZH | 2mm Duplex by MSS
Brand: Cabac
SKU: DLCLC3M-MM3
Alternatively Known As: LC to LC Fibre Patch Lead, OM3 Fibre Optic Cable, Duplex Fibre Patch Cord, LSZH Fibre Patch Lead
Technical Specifications
- Connector Type: Duplex Clip on LC connectors
- Cable Jacket: 2mm Aqua LSZH
- Polarity: Method A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Dimensions (H x L x W): 2mm x 3000mm x 2mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards exceeding test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket available in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The MSS Fibre LC - LC OM3 3 Metre Aqua LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centre and telecommunications applications.
