Trade Discount 17%

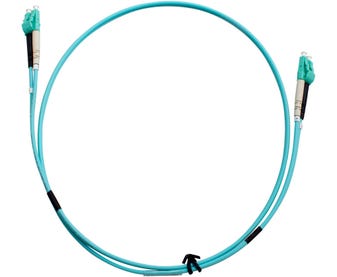

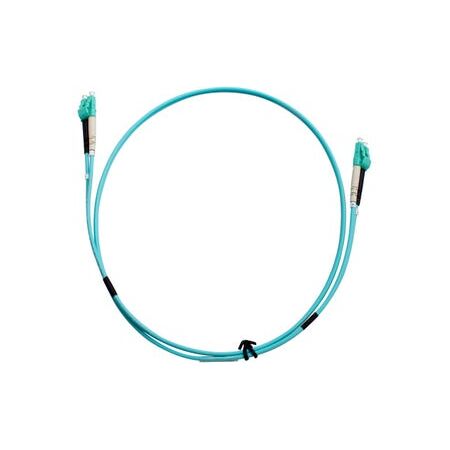

Fibre Patch Lead LC-LC OM3 | Duplex Clip-on | 0.5 Metre Aqua LSZH by MSS
Fibre patch lead with LC-LC connectors and OM3 specification—ideal for high-speed data transmission. Built for network installations, featuring a 0.5 metre length and aqua LSZH jacket for safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC-LC OM3 | 0.5 Metre | Aqua LSZH | 2mm Duplex by MSS
Brand: Cabac
SKU: DLCLC0.5M-MM3
Alternatively Known As: Fibre Optic Patch Lead, LC Duplex Patch Cable, OM3 Fibre Patch Cord, LSZH Fibre Cable
Technical Specifications
- Connector Type: Duplex Clip on LC connectors
- Fibre Type: OM3 multimode
- Cable Jacket: 2mm Aqua LSZH
- Polarity: A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Dimensions (H x L x W): 2mm x 500mm x 2mm
- Weight: 0.02 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre LC - LC OM3 0.5 Metre Aqua LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centre and telecommunications applications.
