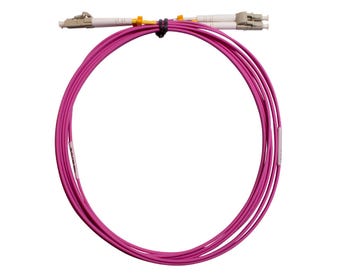

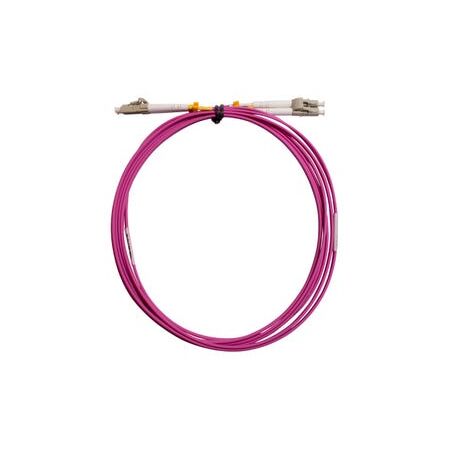

Fibre Patch Lead LC-LC OM4 | 10 Metre | LSZH 2mm Duplex | Erika Violet by MSS
Fibre patch lead LC-LC OM4 with a 10 metre length and Erika Violet color—ideal for high-speed data transmission. Built for network installations, with LSZH 2mm duplex design for safety and flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC-LC OM4 | 10 Metre | Erika Violet | LSZH 2mm Duplex by MSS
Brand: Cabac
SKU: DLCLC10M-MM4
Alternatively Known As: LC to LC OM4 Fibre Patch Lead, Duplex Fibre Optic Cable, LSZH Fibre Patch Cord, 10m LC Duplex Patch Lead
Technical Specifications
- Fibre Type: OM4 multimode
- Connector Type: Duplex LC connectors with clip
- Jacket: 2mm Low Smoke Zero Halogen (LSZH) Erika Violet
- Polarity: Method A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3, RoHS, REACH
- Dimensions (H x L x W): 2mm x 10000mm x 2mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by qualified fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- Complies with AS/CA S008 for telecommunications cabling
- Complies with IEC 11801 for generic cabling for customer premises
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre LC - LC OM4 10 Metre Erika Violet LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centre and telecommunications applications.
