Trade Discount 18%

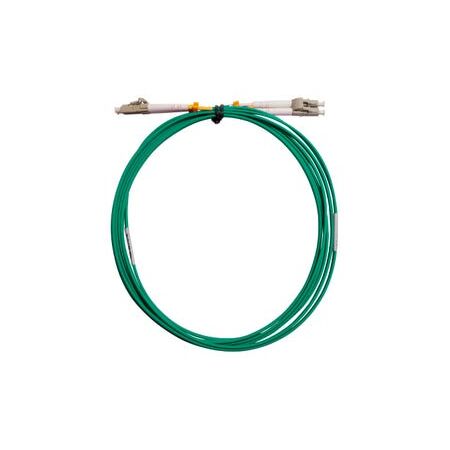

Fibre Patch Lead LC-LC OM4 3 Metre | Green LSZH | 2mm Duplex | High Performance by MSS
Fibre patch lead with LC-LC connectors and OM4 performance—ideal for high-speed data transmission. Built for networking professionals, featuring a 3-metre length and green LSZH jacket for safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC-LC OM4 3 Metre | Green LSZH | 2mm Duplex by MSS
Brand: Cabac
SKU: DLCLC3M-MM4GN
Alternatively Known As: LC to LC Fibre Patch Lead, OM4 Fibre Patch Cable, Duplex Fibre Optic Cable, LSZH Fibre Patch Lead
Technical Specifications
- Cable Type: Duplex Fibre Optic Patch Lead
- Connector Type: LC to LC Duplex Clip connectors
- Fibre Type: OM4 Multimode
- Cable Jacket: 2mm Green LSZH
- Polarity: Method A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3, RoHS, REACH
- Dimensions (H x L x W): 3mm x 3000mm x 3mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained personnel familiar with fibre optic cabling and handling is recommended to ensure optimal performance and avoid damage.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The MSS Fibre LC - LC OM4 3 Metre Green LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase. Ideal for data centres, telecommunications rooms, and fibre equipment patching.
