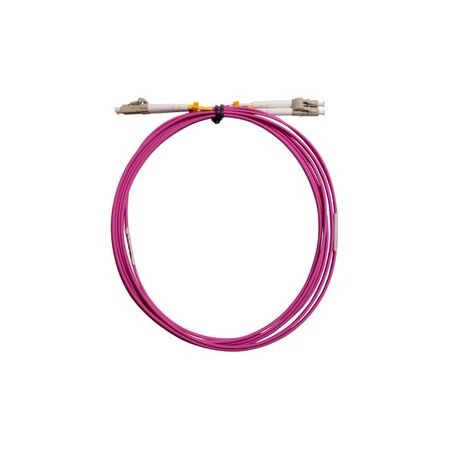

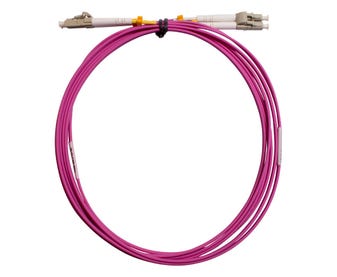

Fibre Patch Lead LC-LC OM4 | 3 Metre | LSZH 2mm Duplex | Erika Violet by Cabac

BRAND: CABAC
SKU: DLCLC3M-MM4
$32.90 List price: $39.90
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options
Fibre patch lead LC-LC OM4 with a 3-metre length and Erika Violet color—ideal for high-speed data transmission. Built for network installations, with LSZH 2mm duplex design for safety and flexibility.

Product Name/Title: Fibre Patch Lead LC-LC OM4 | 3 Metre | Erika Violet | LSZH 2mm Duplex by MSS

Brand: Cabac

SKU: DLCLC3M-MM4

Alternatively Known As: Fibre Optic Patch Lead, LC to LC OM4 Patch Cable, Duplex Fibre Patch Lead, LSZH Fibre Patch Lead, 3m Fibre Patch Cable

Technical Specifications
  • Connector Type: Duplex Clip on LC connectors
  • Fibre Type: OM4 multimode
  • Jacket: 2mm Erika Violet LSZH
  • Polarity: Method A-to-B
  • Performance Tested to IEC 11801 and ANSI/TIA 568-3
  • Mating Cycles: Up to 500 (IEC 61300-2-2)
  • Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3, RoHS, REACH
  • Dimensions (H x L x W): 2mm x 3000mm x 2mm
  • Weight: 0.05 kg
Key Features
  • Performance tested to numerous IEC standards to ensure performance exceeds test requirements
  • Range of connector types
  • Duplex Clip on LC connectors
  • LSZH Jacket in various colours
  • Available in OM1, OM3, OM4 and SM
  • Polarity method 'A-to-B' used in all standard fibre patch leads with LC connectors having duplex clips
  • Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
  • Installation by trained personnel is recommended to ensure optimal performance and compliance with standards.
Applications
  • Data centres
  • Telecommunications rooms
  • Fibre equipment patching
  • Premise cabling
Standards & Compliance
  • AS/CA S008
Environmental Benefits
  • Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
  • RoHS and REACH compliant, ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.

Available Now

The MSS Fibre LC - LC OM4 3 Metre Erika Violet LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centre and telecommunications applications.
