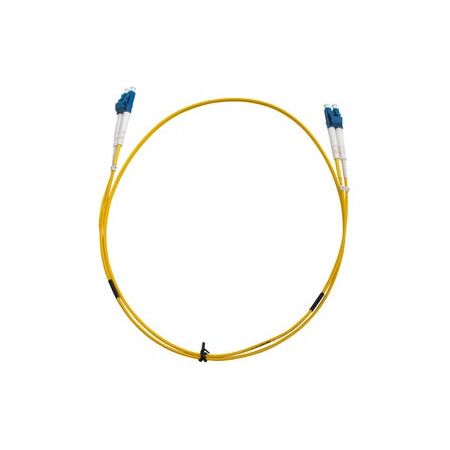

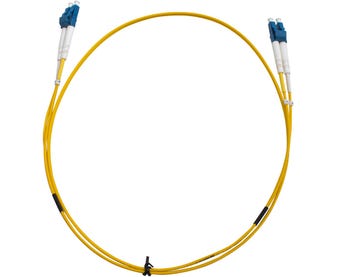

Fibre Patch Lead LC-LC Singlemode | 2 Metre Length | Yellow LSZH Jacket | Duplex Design by MSS

BRAND: CABAC
SKU: DLCLC2M-SM-3MM
$24.90 List price: $30.20
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options
Fibre patch lead with LC-LC singlemode connectors and 2 metre length—ideal for high-speed data transmission. Built for network installations, with durable yellow LSZH jacket for safety and flexibility.

Product Name/Title: Fibre Patch Lead LC-LC Singlemode | 2 Metre Length | Yellow LSZH | 3mm Duplex by MSS

Brand: Cabac

SKU: DLCLC2M-SM-3MM

Alternatively Known As: Singlemode Fibre Patch Lead, LC to LC Duplex Fibre Cable, 2m Fibre Patch Cord, LSZH Fibre Lead

Technical Specifications
  • 3mm Yellow LSZH Jacket
  • Singlemode fibre type
  • Duplex LC connectors with clip
  • Polarity method A-to-B
  • Performance tested to IEC 11801 and ANSI/TIA 568-3 standards
  • Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
  • RoHS and REACH compliant
  • Dimensions (H x L x W): 3mm x 2000mm x 3mm
  • Weight: 0.05 kg
Key Features
  • Performance tested to numerous IEC standards to ensure performance exceeds test requirements
  • Range of connector types
  • Duplex Clip on LC connectors
  • LSZH Jacket in various colours
  • Available in OM1, OM3, OM4 and Singlemode
  • Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
Professional Installation Requirements
  • Installation by qualified fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
  • Data centres
  • Telecommunications rooms
  • Fibre equipment patching
  • CATV/Video
  • PON
  • WDM/DWDM
  • FTTH
Standards & Compliance
  • AS/CA S008
  • IEC 11801
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
  • RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The MSS Fibre LC - LC Singlemode 2 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications, and high-speed metropolitan access networks.
