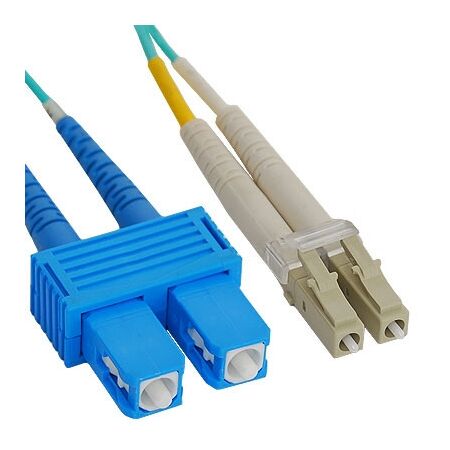

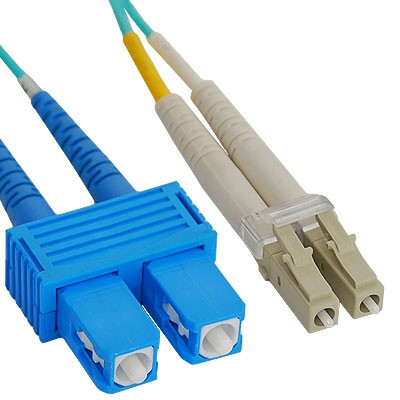

Fibre Patch Lead LC/SC Duplex Multi-Mode OM4 50U | 3m Length | Low Insertion Loss & High Return Loss | by Repelec
The Fibre Patch Lead LC/SC Duplex Multi-Mode OM4 50U is designed for high-speed data transmission, featuring a 3m length and low insertion loss for optimal performance. Ideal for data centres and enterprise networking, this cable supports 10/40/100Gbps Ethernet applications and is built with an LSZH jacket for enhanced safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC/SC Duplex Multi-Mode OM4 50U | 3m Length | Low Insertion Loss & High Return Loss | by Repelec
Brand: Repelec
SKU: DYNFL-LCSCOM4-3
Alternatively Known As: OM4 Fibre Patch Lead, LC to SC Duplex Fibre Cable, 3m OM4 Patch Cord, Multi-Mode Fibre Optic Cable, LC-SC OM4 3m
Technical Specifications
- Fibre Type: OM4 50/125µm multi-mode
- Connector Type: LC to SC duplex
- Length: 3 metres
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Bandwidth: Up to 4700 MHz·km
- Insertion Loss: ≤0.3dB
- Return Loss: ≥30dB
- Operating Temperature: -20°C to +70°C
- RoHS compliant
- Dimensions (H x L x W): 5mm x 3000mm x 5mm
- Weight: 0.1 kg
Key Features
- 3 metre length for flexible installations
- OM4 50/125µm multi-mode fibre for high bandwidth and low attenuation
- LC to SC duplex connectors for versatile compatibility
- Low insertion loss and high return loss
- Ideal for 10/40/100Gbps Ethernet applications
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety
Professional Installation Requirements
- Installation by a qualified network technician is recommended to ensure optimal performance and compliance with network standards.
Applications
- Data centres
- Telecommunications rooms
- Enterprise networking
- Server connections
- High-speed LAN and SAN environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic emissions in case of fire
- Supports high-speed data transmission, enabling efficient network infrastructure
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec LC/SC Duplex Multi-Mode OM4 50U 3m Fibre Patch Lead is available for immediate purchase. Ideal for high-speed data centre, enterprise, and telecommunications applications.
