Fibre Patch Lead LC/SC Duplex OM4 50U | 15m Length | Low Insertion Loss | LSZH Jacket | @Pack by Repelec
The Fibre Patch Lead LC/SC Duplex OM4 50U is designed for high-speed data transmission, featuring a 15m length and low insertion loss for optimal performance. Ideal for data centres and enterprise networking, this multimode fibre cable supports 10/40/100Gbps Ethernet applications and comes with a LSZH jacket for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

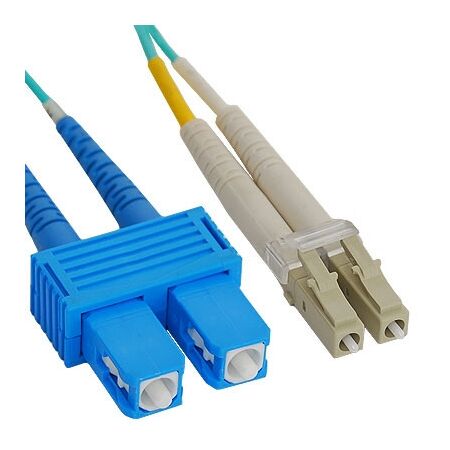

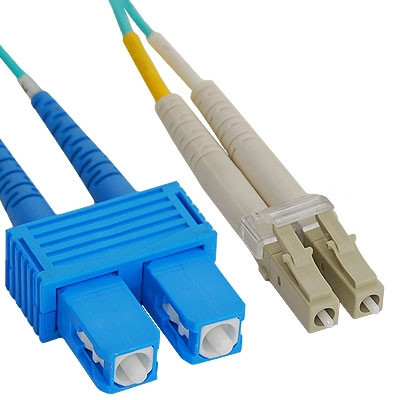

Product Name/Title: Fibre Patch Lead LC/SC Duplex OM4 50U | 15m Length | Low Insertion Loss | LSZH Jacket | @Pack by Repelec
Brand: Repelec
SKU: DYNFL-LCSCOM4-15
Alternatively Known As: OM4 Fibre Patch Lead, LC to SC Duplex Fibre Cable, 15m Multimode Fibre Optic Patch Cord, OM4 LC-SC Patch Cable
Technical Specifications
- Fibre Type: OM4 50/125µm multimode
- Connector Type: LC duplex to SC duplex
- Length: 15 metres
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Insertion Loss: ≤0.3dB
- Return Loss: ≥30dB
- Operating Wavelength: 850nm/1300nm
- Bandwidth: 4700 MHz·km (at 850nm)
- Supports 10/40/100Gbps Ethernet
- Dimensions (H x L x W): 5mm x 15000mm x 5mm
- Weight: 0.15 kg
Key Features
- 15 metre length for extended reach
- OM4 50/125µm multimode fibre for high bandwidth applications
- LC to SC duplex connectors for versatile compatibility
- Low insertion loss and high return loss
- Suitable for 10/40/100Gbps Ethernet applications
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety
Professional Installation Requirements
- Installation by a qualified network technician is recommended to ensure optimal performance and compliance with network standards.
Applications
- Data centres
- Enterprise networking
- Telecommunications rooms
- Server rooms
- High-speed backbone connections
- LAN and SAN environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic emissions in case of fire
- Supports high-speed data transmission, enabling energy-efficient network infrastructure
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec LC/SC Duplex OM4 50U 15m Fibre Patch Lead is available for immediate purchase. Ideal for high-speed data centre, enterprise, and telecommunications applications.
