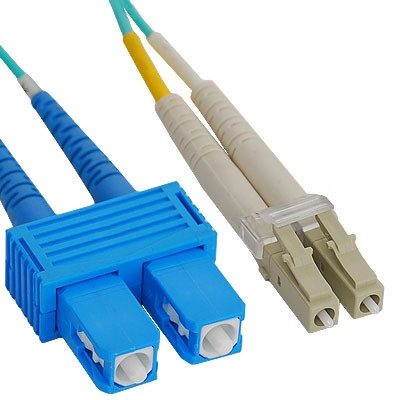

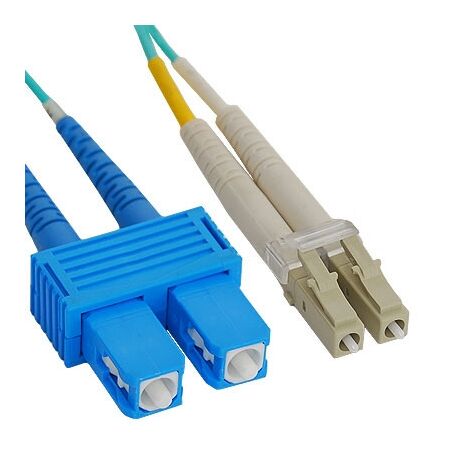

Fibre Patch Lead LC/SC Duplex OM4 50U | 2m Length | Low Insertion Loss | Aqua LSZH Jacket | @Pack by Repelec
The Fibre Patch Lead LC/SC Duplex OM4 50U is designed for high-speed data transmission, featuring a 2m length and low insertion loss for optimal performance. Ideal for data centres and enterprise networking, this patch lead is built with an LSZH jacket for enhanced safety, ensuring compliance with network standards and reducing toxic emissions in case of fire.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC/SC Duplex OM4 50U | 2m Length | Low Insertion Loss | Aqua LSZH Jacket | @Pack by Repelec
Brand: Repelec
SKU: DYNFL-LCSCOM4-2
Alternatively Known As: OM4 Fibre Patch Lead, LC to SC Duplex Fibre Cable, 2m Multimode Fibre Patch Cord, OM4 50/125 LC-SC Patch Lead
Technical Specifications
- Connector Type: LC to SC Duplex
- Fibre Type: OM4 Multimode
- Core/Cladding Diameter: 50/125µm
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Length: 2 metres
- Insertion Loss: ≤0.3dB
- Return Loss: ≥30dB
- Colour: Aqua
- Dimensions (H x L x W): 6mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- LC to SC duplex connectors for versatile compatibility
- OM4 multimode fibre for high-speed data transmission
- 50/125µm core/cladding diameter
- Low insertion loss and high return loss
- 2 metre length for flexible installations
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure optimal performance and compliance with network standards.
Applications
- Data centres
- Telecommunications rooms
- Enterprise networking
- High-speed LAN and SAN connections
- Server rooms
- Backbone fibre connections
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic emissions in case of fire
- Supports high bandwidth, enabling efficient data transfer and reducing energy consumption in network equipment
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec LC/SC Duplex OM4 50U 2m Fibre Patch Lead is available for immediate purchase. Ideal for high-speed data centre, enterprise, and telecommunications applications.
