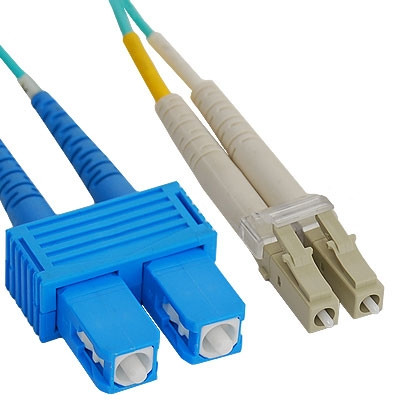

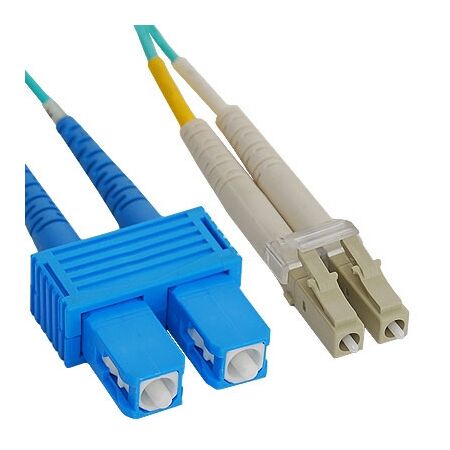

Fibre Patch Lead LC/SC Duplex OM4 50U | 5m Length | Low Insertion Loss | High Return Loss | @Pack by Repelec
The Fibre Patch Lead LC/SC Duplex OM4 50U is designed for high-speed data transmission, featuring OM4 multimode fibre and versatile LC to SC duplex connectors. With a 5m length and low insertion loss, it's perfect for data centres, enterprise networking, and telecommunications applications, ensuring reliable performance and compliance with network standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead LC/SC Duplex OM4 50U | 5m Length | Low Insertion Loss | High Return Loss | @Pack by Repelec
Brand: Repelec
SKU: DYNFL-LCSCOM4-5
Alternatively Known As: OM4 Fibre Patch Lead, LC to SC Duplex Fibre Cable, 5m Multimode Fibre Patch Cord, OM4 50/125 Fibre Optic Cable
Technical Specifications
- Fibre Type: OM4 multimode 50/125μm
- Connector Type: LC to SC duplex
- Length: 5 metres
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Insertion Loss: ≤0.3dB
- Return Loss: ≥30dB
- Operating Wavelength: 850nm/1300nm
- Bandwidth: ≥4700 MHz·km (at 850nm)
- Supports 10/40/100Gbps Ethernet
- Dimensions (H x L x W): 3mm x 5000mm x 3mm
- Weight: 0.1 kg
Key Features
- OM4 multimode fibre for high-speed data transmission
- LC to SC duplex connectors for versatile connectivity
- Low insertion loss and high return loss
- 5 metre length for flexible installations
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety
- Supports 10/40/100Gbps Ethernet applications
Professional Installation Requirements
- Installation by a qualified network technician is recommended to ensure optimal performance and compliance with network standards.
Applications
- Data centres
- Enterprise networking
- Telecommunications rooms
- Server rooms
- High-speed LAN and SAN connections
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic emissions in case of fire
- Enables energy-efficient high-speed data transfer, reducing network hardware requirements
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec LC/SC Duplex OM4 50U 5m Fibre Patch Lead is available for immediate purchase. Ideal for high-speed data centre, enterprise, and telecommunications applications.
