Fibre Patch Lead LC Singlemode 5m | Yellow LSZH | A-to-B Polarity | High Performance by Cabac
MSS Fibre SCA - LC Singlemode 5 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead designed for high performance fibre optic connectivity in data centres and telecommunications environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

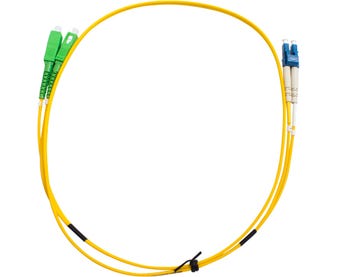

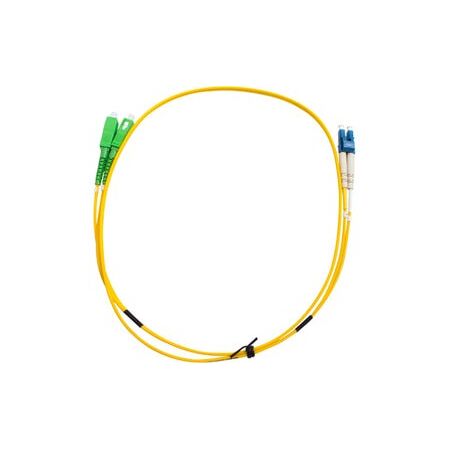

Product Name/Title: MSS Fibre SCA - LC Singlemode 5 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead
Brand: Cabac
SKU: DSCALC5M-SM
Alternatively Known As: Fibre Optic Patch Lead, Singlemode Fibre Cable, Duplex Fibre Patch Cord, LSZH Fibre Patch Lead, LC to SCA Fibre Cable
Technical Specifications
- 2mm Yellow LSZH Jacket
- Singlemode fibre type
- Duplex configuration
- Polarity method A-to-B
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Connector type: Duplex Clip on LC connectors
- Tested to IEC 61300-3 standards
- Dimensions (H x L x W): 2mm x 5000mm x 2mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
Standards & Compliance
- AS/CA S008
- IEC 11801
- 14763.36
- ANSI/TIA 568-3
- 61300-3
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre SCA - LC Singlemode 5 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for data centre and telecommunications cabling applications.
