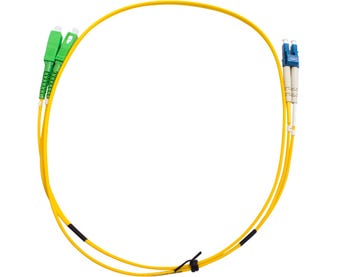

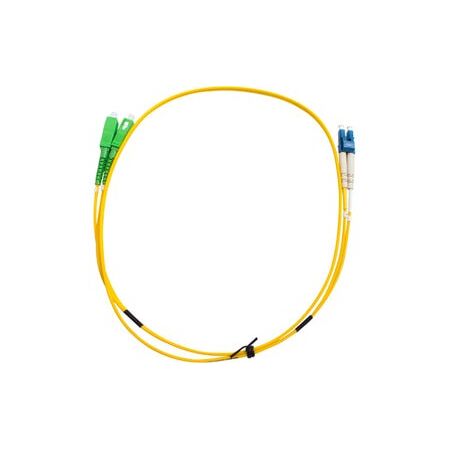

Fibre Patch Lead LC to SCA | 3 Metre Length | Yellow LSZH Jacket | Duplex Connectors by Cabac
MSS Fibre SCA - LC Singlemode 3 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead designed for high performance fibre optic patching in data centres and telecommunications rooms with durable LSZH jacket and duplex LC connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MSS Fibre SCA - LC Singlemode 3 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead
Brand: Cabac
SKU: DSCALC3M-SM
Alternatively Known As: Singlemode Fibre Patch Lead, Duplex Fibre Optic Cable, LC to SCA Fibre Patch Cord, LSZH Fibre Patch Lead
Technical Specifications
- 3 metre length
- 2mm Yellow LSZH jacket
- Duplex Clip on LC connectors
- Polarity method A-to-B
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Complies with AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3
- Up to 500 mating cycles (IEC 61300-2-2)
- Dimensions (H x L x W): 2mm x 3000mm x 2mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method "A-to-B" used in all standard fibre patch leads with LC duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Professional installation by qualified fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- AS/CA S008 - Installation requirements for customer cabling (wiring rules)
- IEC 11801 - Generic cabling for customer premises
- ANSI/TIA 568-3 - Optical fibre cabling components standard
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant materials ensure reduced environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty policy for details.
Available Now
The MSS Fibre SCA - LC Singlemode 3 Metre Yellow LSZH 2mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications rooms, and fibre equipment patching.
