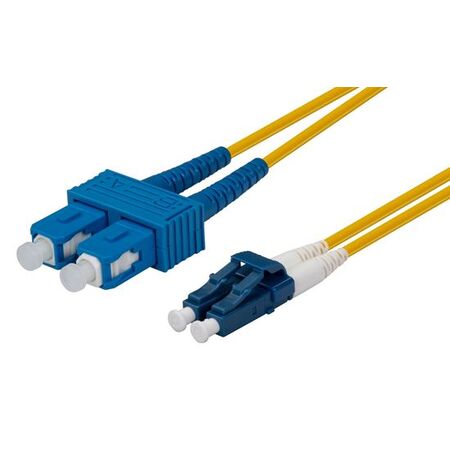

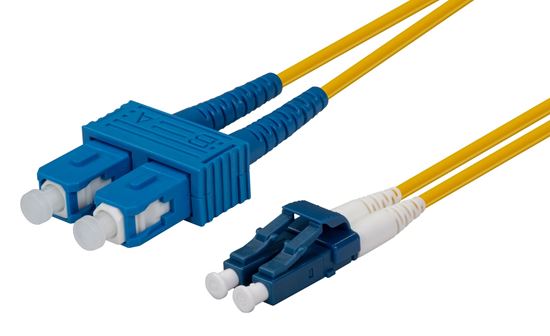

Fibre Patch Lead LC/SC Duplex Single-Mode OS2 9U | 5m Length | Low Insertion Loss | Yellow LSZH Jacket | @Pack by Repelec

BRAND: Repelec
SKU: DYNFSM-LCSC-5
$41.80 List price: $50.60
+ −
30 Days Return Electricians Unlock Trade Access
The Fibre Patch Lead LC/SC Duplex Single-Mode OS2 9U is designed for high-speed data transmission, featuring a 5m length and low insertion loss for optimal performance. Ideal for data centres and telecommunications networks, this patch lead is equipped with a yellow LSZH jacket for safety and easy identification, ensuring reliable connectivity in demanding environments.

Product Name/Title: Fibre Patch Lead LC/SC Duplex Single-Mode OS2 9U | 5m Length | Low Insertion Loss | Yellow LSZH Jacket | @Pack by Repelec

Brand: Repelec

SKU: DYNFSM-LCSC-5

Alternatively Known As: LC to SC Fibre Patch Lead, OS2 Single Mode Fibre Cable, Duplex Fibre Optic Patch Cord, 5m Fibre Patch Lead, LC-SC OS2 Patch Cable

Technical Specifications
  • Connector Type: LC to SC Duplex
  • Fibre Type: Single-mode OS2 (9/125μm)
  • Cable Length: 5 metres
  • Jacket Material: LSZH (Low Smoke Zero Halogen)
  • Insertion Loss: ≤0.3dB
  • Return Loss: ≥50dB
  • Operating Wavelength: 1310/1550nm
  • Cable Colour: Yellow
  • Polish Type: UPC
  • Standards: Compliant with IEC, TIA/EIA, and RoHS
  • Dimensions (H x L x W): 2mm x 5000mm x 2mm
  • Weight: 0.1 kg
Key Features
  • 5 metre length for flexible installations
  • LC to SC connectors for versatile compatibility
  • Duplex single-mode OS2 9/125μm fibre for high-speed, long-distance data transmission
  • Low insertion loss and high return loss
  • Yellow LSZH (Low Smoke Zero Halogen) jacket for safety and easy identification
  • Factory terminated and tested for reliability
Professional Installation Requirements
  • Installation by a qualified network technician is recommended to ensure optimal performance and compliance with network standards.
Applications
  • Data centres
  • Telecommunications networks
  • Enterprise networking
  • FTTx (Fibre to the x) installations
  • Server rooms
  • High-speed data transmission environments
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
  • Supports energy-efficient high-speed data transmission, reducing network power consumption
Warranty Information

12 months manufacturer's warranty against defects.

Available Now

The Repelec LC/SC Duplex Single-Mode OS2 9U Fibre Patch Lead 5m is available for immediate purchase. Ideal for high-speed data transmission in data centres, enterprise networks, and telecom applications.
