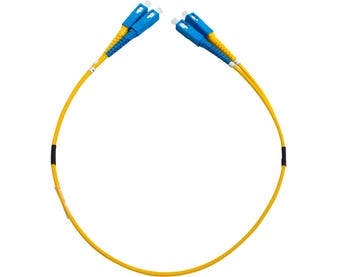

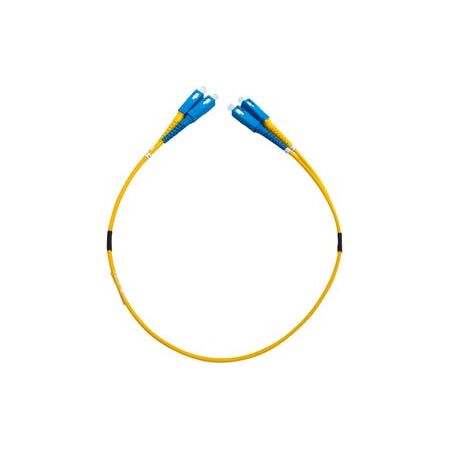

Fibre Patch Lead SC-SC | 0.5 Metre | Yellow LSZH Jacket | 3mm Duplex by Cabac
Fibre patch lead SC-SC with 0.5 metre length and yellow LSZH jacket—ideal for high-speed data transmission. Built for network installations, with durable 3mm duplex design for reliable connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead SC-SC | 0.5 Metre | Yellow LSZH | 3mm Duplex by MSS
Brand: Cabac
SKU: DSCSC0.5M-SM
Alternatively Known As: Singlemode Fibre Patch Lead, SC to SC Fibre Patch Cable, Duplex Fibre Optic Patch Lead, LSZH Fibre Patch Cord
Technical Specifications
- Connector Type: SC to SC Duplex
- Mode: Singlemode
- Cable Length: 0.5 Metre
- Jacket: 3mm Yellow LSZH
- Polarity: A-to-B
- Performance Tested to IEC 11801 and ANSI/TIA 568-3
- Mating Cycles: Up to 500 (IEC 61300-2-2)
- Standards Compliance: AS/CA S008, IEC 11801, 14763.36, ANSI/TIA 568-3, 61300-3, RoHS, REACH
- Dimensions (H x L x W): 3mm x 500mm x 3mm
- Weight: 0.05 kg
Key Features
- Performance tested to numerous IEC standards to ensure performance exceeds test requirements
- Range of connector types
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and Singlemode
- Polarity method 'A-to-B' used in all standard fibre patch leads with only LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
- 3mm Yellow LSZH sheath
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- CATV/Video
- PON
- WDM/DWDM
- FTTH
Standards & Compliance
- AS/CA S008
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre SC - SC Singlemode 0.5 Metre Yellow LSZH 3mm Duplex Fibre Patch Lead is available for immediate purchase, ideal for high-performance fibre optic networking applications.
