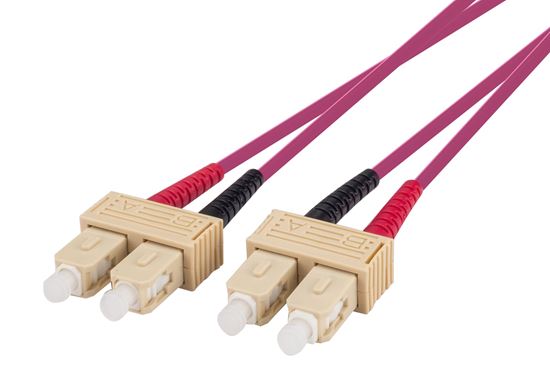

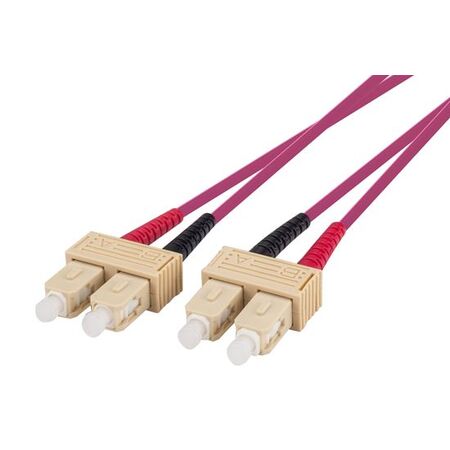

Fibre Patch Lead SC/SC Duplex OM4 50U | 15m Length | High Bandwidth | LSZH Jacket | @Pack by Repelec
The Fibre Patch Lead SC/SC Duplex OM4 50U is designed for high-speed data transfer, featuring a 15m length and OM4 50/125µm multimode fibre. Ideal for data centres and enterprise networking, this patch lead supports 10/40/100Gbps Ethernet applications and comes with a low smoke zero halogen jacket for enhanced safety. With secure SC to SC duplex connectors, it ensures reliable connections for your network infrastructure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead SC/SC Duplex OM4 50U | 15m Length | High Bandwidth | LSZH Jacket | @Pack by Repelec
Brand: Repelec
SKU: DYNFL-SCSCOM4-15
Alternatively Known As: SC to SC OM4 Fibre Patch Lead, OM4 Duplex Fibre Optic Cable, 15m SC-SC Multimode Patch Cord, OM4 50/125 SC-SC Fibre Lead
Technical Specifications
- Connector Type: SC to SC Duplex
- Fibre Type: OM4 50/125µm Multimode
- Length: 15 metres
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Bandwidth: Up to 4700 MHz·km
- Supported Data Rates: 10/40/100Gbps Ethernet
- Insertion Loss: ≤0.3dB (typical)
- Return Loss: ≥30dB
- Colour: Aqua
- Dimensions (H x L x W): 10mm x 15000mm x 5mm
- Weight: 0.15 kg
Key Features
- 15 metre length for extended reach
- OM4 50/125µm multimode fibre for high bandwidth applications
- SC to SC duplex connectors for secure and reliable connections
- Low insertion loss and high return loss
- Suitable for 10/40/100Gbps Ethernet applications
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety
Professional Installation Requirements
- Installation by a qualified network technician is recommended to ensure optimal performance and compliance with network standards.
Applications
- Data centres
- Enterprise networking
- Telecommunications rooms
- Server connections
- High-speed backbone links
- LAN and SAN environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic emissions in case of fire
- Supports high-speed data transfer, enabling efficient network infrastructure and reducing energy consumption per bit
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec SC/SC Duplex OM4 50U 15m Fibre Patch Lead is available for immediate purchase. Ideal for high-speed data centre, enterprise, and telecommunications applications.
