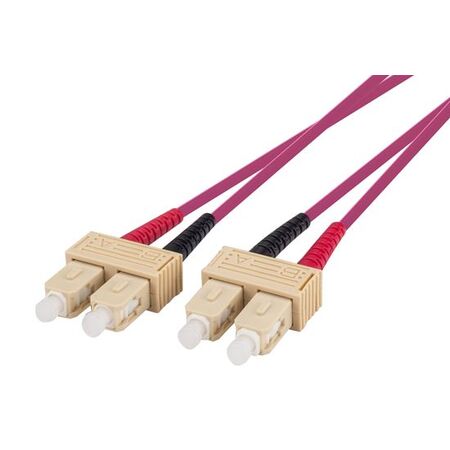

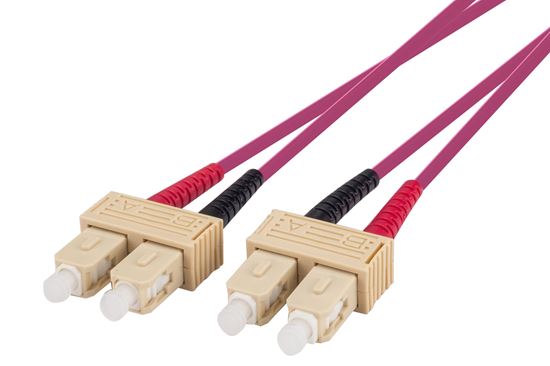

Fibre Patch Lead SC/SC Duplex OM4 50U | 3m Length | Low Insertion Loss | Aqua Color | @Pack by Repelec
The Fibre Patch Lead SC/SC Duplex OM4 50U is designed for high-speed data transmission, featuring a 3m length and low insertion loss for optimal performance. Ideal for data centres and enterprise networking, this patch lead ensures secure connections with its LSZH jacket, making it a safe choice for telecommunications applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead SC/SC Duplex OM4 50U | 3m Length | Low Insertion Loss | Aqua Color | @Pack by Repelec
Brand: Repelec
SKU: DYNFL-SCSCOM4-3
Alternatively Known As: OM4 Fibre Patch Lead, SC to SC Duplex Fibre Cable, 3m Multimode Fibre Patch Cord, OM4 50/125 SC-SC Patch Lead
Technical Specifications
- Connector Type: SC to SC Duplex
- Fibre Type: OM4 Multimode 50/125µm
- Length: 3 metres
- Jacket Material: LSZH (Low Smoke Zero Halogen)
- Insertion Loss: ≤0.3dB
- Return Loss: ≥30dB
- Operating Wavelength: 850nm/1300nm
- Bandwidth: 4700 MHz·km (at 850nm)
- Colour: Aqua
- Dimensions (H x L x W): 5mm x 3000mm x 5mm
- Weight: 0.1 kg
Key Features
- SC to SC duplex connectors for secure and reliable connections
- OM4 multimode fibre for high-speed data transmission up to 100Gbps
- Low insertion loss and high return loss
- 3 metre length for flexible installation
- LSZH (Low Smoke Zero Halogen) jacket for enhanced safety
- 50/125µm core size for optimal performance
Professional Installation Requirements
- Installation by a qualified network technician is recommended to ensure optimal performance and compliance with network standards.
Applications
- Data centres
- Telecommunications rooms
- Enterprise networking
- High-speed LAN and SAN connections
- Server rooms
- Campus backbone connections
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- LSZH jacket reduces toxic emissions in case of fire
- Supports high-speed data transfer, enabling efficient network infrastructure
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Repelec SC/SC Duplex OM4 50U 3m Fibre Patch Lead is available for immediate purchase. Ideal for high-speed data centre, enterprise, and telecommunications applications.
