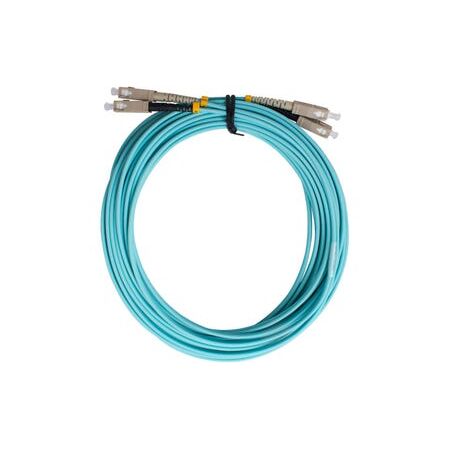

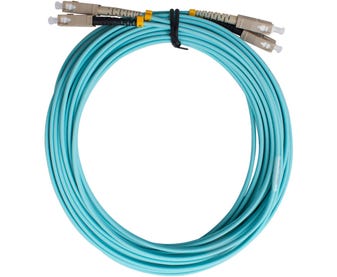

Fibre Patch Lead SC-SC OM3 15 Metre | Aqua LSZH | 3mm Duplex | High Performance by MSS
Fibre patch lead with SC-SC connectors and 15 metre length—ideal for high-speed data transmission. Built for network installations, featuring aqua LSZH material for safety and flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Patch Lead SC-SC OM3 15 Metre | Aqua LSZH | 3mm Duplex by MSS
Brand: Cabac
SKU: DSCSC15M-MM3
Alternatively Known As: Fibre Optic Patch Lead, Duplex Fibre Patch Cable, SC to SC Fibre Patch Lead, OM3 Fibre Patch Cable, LSZH Fibre Patch Lead
Technical Specifications
- 3mm Aqua LSZH Jacket
- Duplex fibre patch lead
- Polarity method: A-to-B
- Performance tested to IEC 11801 and ANSI/TIA 568-3
- Connector type: SC to SC
- Mode: OM3
- Up to 500 mating cycles (IEC 61300-2-2)
- Dimensions (H x L x W): 3mm x 15000mm x 3mm
- Weight: 0.1 kg
Key Features
- Performance tested to numerous IEC standards exceeding test requirements
- Range of connector types available
- Duplex Clip on LC connectors
- LSZH Jacket in various colours
- Available in OM1, OM3, OM4 and SM
- Polarity method "A-to-B" used in all standard fibre patch leads with LC connectors having duplex clips
- Up to 500 mating cycles (IEC 61300-2-2)
Professional Installation Requirements
- Installation by trained fibre optic technicians is recommended to ensure optimal performance and compliance with standards.
Applications
- Data centres
- Telecommunications rooms
- Fibre equipment patching
- Premise cabling
Standards & Compliance
- AS/CA S008
- IEC 11801
- 14763.36
- ANSI/TIA 568-3
- 61300-3
- RoHS
- REACH
Environmental Benefits
- Low Smoke Zero Halogen (LSZH) jacket reduces toxic emissions in case of fire
- RoHS and REACH compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific warranty details.
Available Now
The MSS Fibre SC - SC OM3 15 Metre Aqua LSZH 3mm Duplex Fibre Patch Lead is available now for immediate purchase. Ideal for data centres, telecommunications, and fibre equipment patching.
